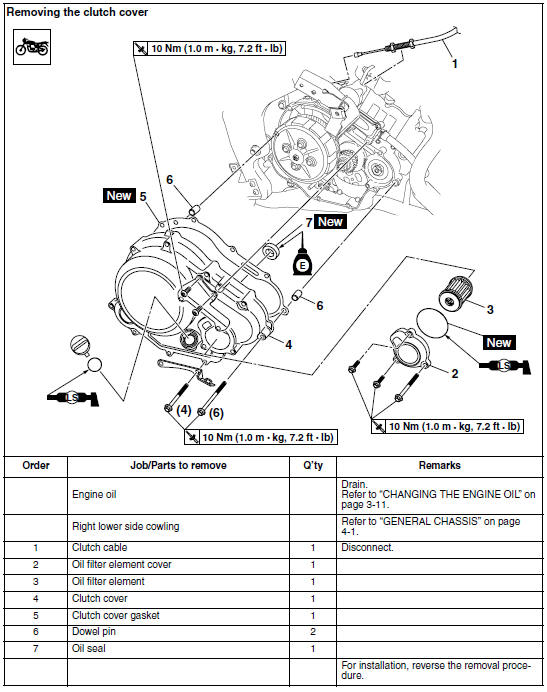

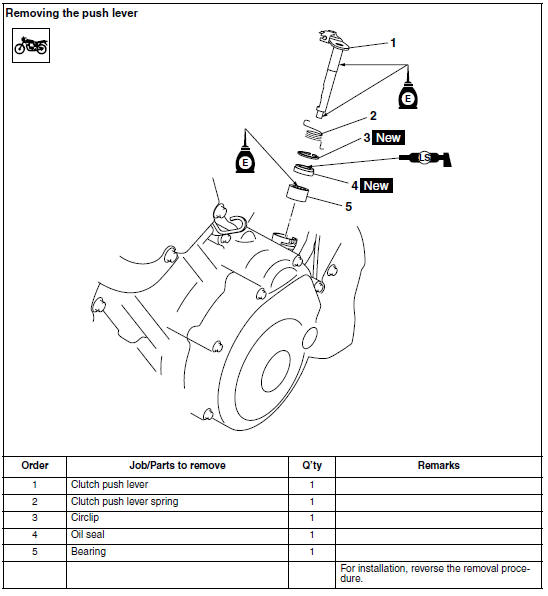

Yamaha YZF-R125 Service Manual: Clutch
- Removing the clutch
- Checking the friction plates
- Checking the clutch plates
- Checking the clutch springs
- Checking the clutch housing
- Checking the clutch boss
- Checking the primary drive gear
- Checking the primary driven gear
- Installing the clutch
Assembling the starter motor
1. Install:
Starter motor front cover/brush holder set "1"
Starter motor yoke "2"
NOTE:
Align the marks "a" on the starter motor yoke and
starter motor front cover/brush holder set.
...

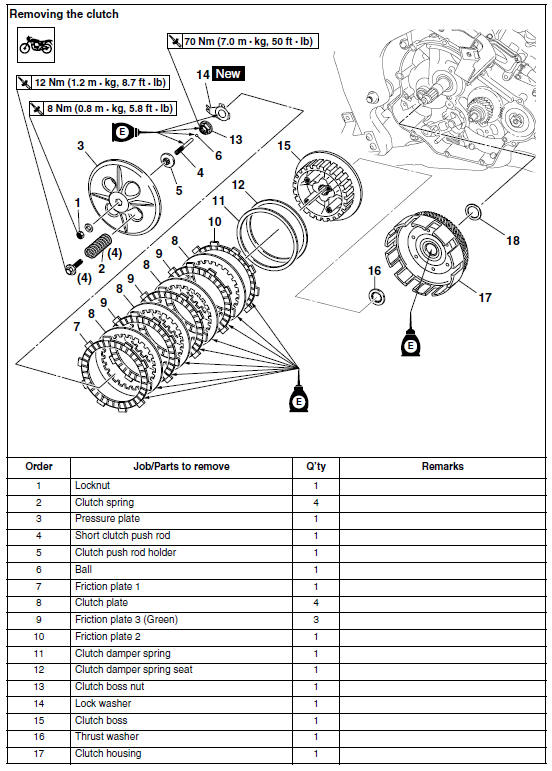

Removing the clutch
1. Straighten the lock washer tab.
2. Loosen:
Clutch boss nut "1"
NOTE:
While holding the clutch boss "2" with the universal
clutch holder "3", loosen the clutch boss nut.
...
Other materials:
Installing the primary drive gear and balancer gears
1. Install:
Balancer driven gear "1"
Lock washer
Balancer drive gear "2"
Primary drive gear
Washer "3"
Balancer driven gear nut
Primary drive gear nut
NOTE:
Align the punch mark "a" in the balancer drive
gear "2" with the punch mark "b" in the balancer
driven gear "1".
...
Ignition circuit cut-off system
The ignition circuit cut-off system (comprising
the sidestand switch, clutch
switch and neutral switch) has the following
functions.
It prevents starting when the transmission
is in gear and the sidestand
is up, but the clutch lever is
not pulled.
It prevents starting when the t ...
