Yamaha YZF-R125 Service Manual: Checking the clutch springs

Yamaha YZF-R125 Service Manual / Engine / Clutch / Checking the clutch springs

The following procedure applies to all of the clutch springs.

1. Check:

  • Clutch spring Damage Replace the clutch
    springs as a set.

2. Measure:

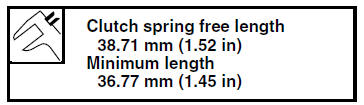

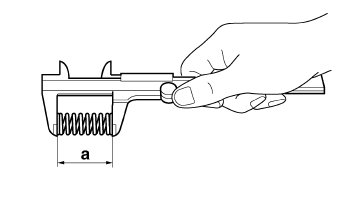

  • Clutch spring free length "a" Out of specification Replace
    the clutch springs as a set.

Checking the clutch springs


    Checking the clutch plates
    The following procedure applies to all of the clutch plates. 1. Check: Clutch plate Damage Replace the clutch plates as a set. 2. Measure: Clutch plate warpage (with a surface p ...

    Checking the clutch housing
    1. Check: Clutch housing dogs "1" Damage/pitting/wear  Deburr the clutch housing dogs or replace the clutch housing. NOTE: Pitting on the clutch housing dogs will cause erratic cl ...
