1. Check:

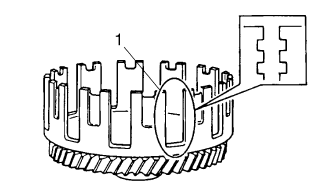

  • Clutch housing dogs "1" Damage/pitting/wear
    Deburr the clutch housing dogs or replace the clutch housing.

NOTE:

Pitting on the clutch housing dogs will cause erratic clutch operation.

Checking the clutch housing


2. Check:

  • Bearing Damage/wear Replace the
    bearing and clutch housing.
    Checking the clutch springs
    The following procedure applies to all of the clutch springs. 1. Check: Clutch spring Damage Replace the clutch springs as a set. 2. Measure: Clutch spring free length "a" Out o ...

    Checking the clutch boss
    1. Check: Clutch boss splines Damage/pitting/wear Replace the clutch boss. NOTE: Pitting on the clutch boss splines will cause erratic clutch operation. Checking the pressure plate 1. C ...
