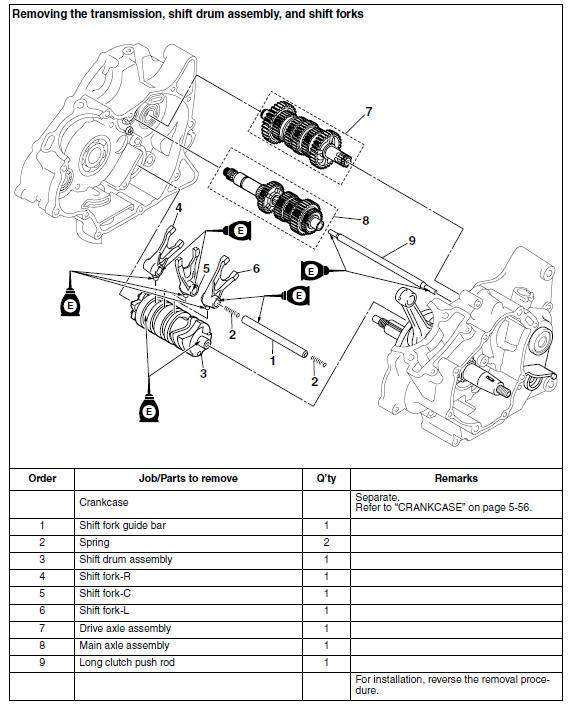

Yamaha YZF-R125 Service Manual: Transmission
- Checking the shift forks
- Checking the shift drum assembly
- Checking the transmission
- Checking the clutch push rods

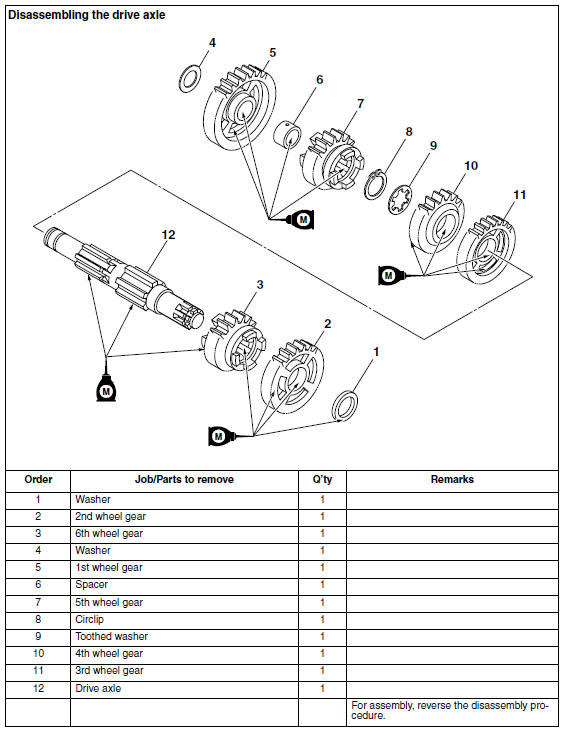

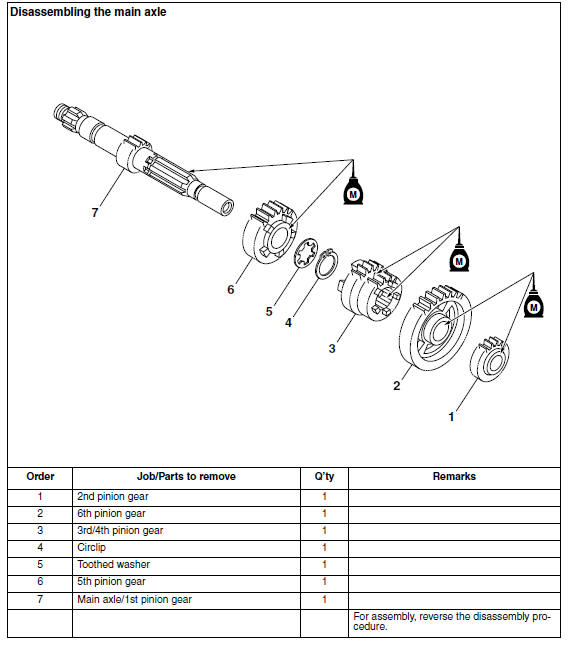

- Assembling the main axle and drive axle
- Installing the shift forks and shift drum assembly
Installing the crankshaft
1. Install:
Crankshaft "1"
NOTE:
Install the crankshaft with the crankshaft installer
pot "2", crankshaft installer bolt "3", adapter
(M12) "4" and spacer (crankshaft installer) "5".
...
Checking the shift forks
The following procedure applies to all of the shift
forks.
1. Check:
Shift fork cam follower "1"
Shift fork pawl "2"
Bends/damage/scoring/wear
Replace the
shift fork.
2. Check:
...
Other materials:
Checking the timing chain tensioner
1. Check:
Timing chain tensioner
Cracks/damage/rough movement Replace.
a. Lightly press the timing chain tensioner rod
into the timing chain tensioner housing by
hand.
NOTE:
While pressing the timing chain tensioner rod,
wind it clockwise with a thin screwdriver "1" until
it stops.
