Yamaha YZF-R125 Service Manual: Assembling the main axle and drive axle

Yamaha YZF-R125 Service Manual / Engine / Transmission / Assembling the main axle and drive axle

1. Install:

  • Toothed washer "1"
  • Circlip "2"

NOTE:

  • Be sure to install the circlip so that its sharp edge "a" is facing away from the toothed washer and gear.
  • Be sure the circlip ends "b" are positioned at the axle spline groove "c".

Assembling the main axle and drive axle

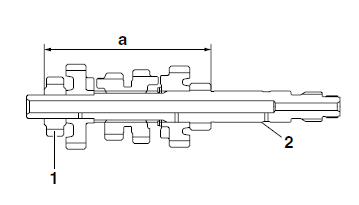

2. Install:

  • 2nd pinion gear "1"

NOTE:

Press the 2nd pinion gear into the main axle "2", as shown in the illustration.


Assembling the main axle and drive axle
