Yamaha YZF-R125 Service Manual: Specifications

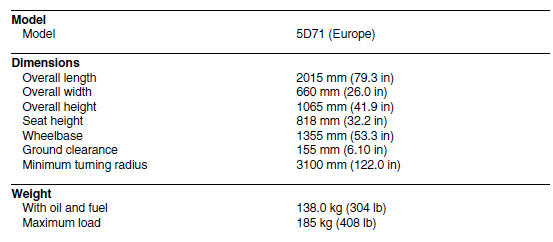

General specifications
- Engine specifications
- Chassis specifications
- Electrical specifications
- Tightening torques
- Lubrication points and lubricant types
- Lubrication system chart and diagrams
- Cooling system diagrams
- Cable routing
Special tools
The following special tools are necessary for complete and accurate tune-up
and assembly. Use only
the appropriate special tools as this will help prevent damage caused by the use
of inappropriat ...
Other materials:
Ecu self-diagnostic function
The ECU is equipped with a self-diagnostic function in order to ensure that
the fuel injection system is
operating normally. If this function detects a malfunction in the system, it
immediately operates the engine
under substitute characteristics and illuminates the engine trouble warning
li ...
Adjusting the throttle cable free play
Throttle cable free play
The throttle cable free play should measure
3.0-5.0 mm (0.12-0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if necessary,
adjust it as follows.
TIP
The engine idling speed must be correctly
adjusted before checkin ...
Circuit diagram
4. Main fuse
5. Main switch
9. Battery
14.Neutral switch
25.ECU (engine control unit)
31.Fuel sender
34.Rear brake light switch
35.Front brake light switch
37.Tail/brake light
38.Rear right turn signal light
39.Rear left turn signal light
40.Front right turn signal light
41.Front lef ...
