Yamaha YZF-R125 Service Manual: Engine oil lubrication chart

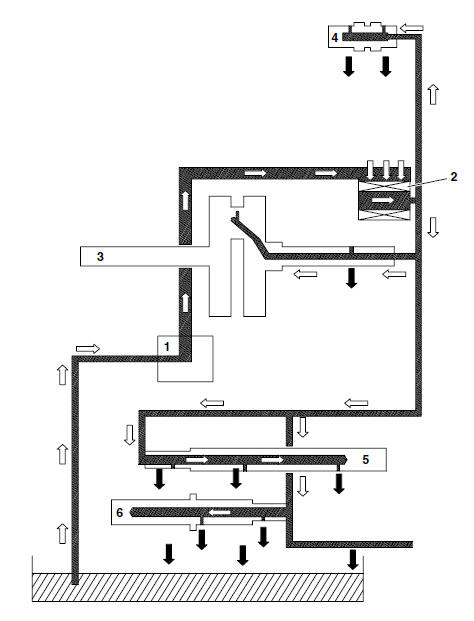

Engine oil lubrication chart


  1. Oil pump
  2. Oil filter element
  3. Crankshaft
  4. Camshaft
  5. Main axle
  6. Drive axle
    Lubrication system chart and diagrams
    ...

    Lubrication diagrams
    Clutch push lever Main axle Drive axle Crankshaft Oil filter Oil pump assembly Oil strainer To cylinder head Camshaft Crankshaft Main axle Drive axle ...
