Yamaha YZF-R125 Service Manual: Engine specifications

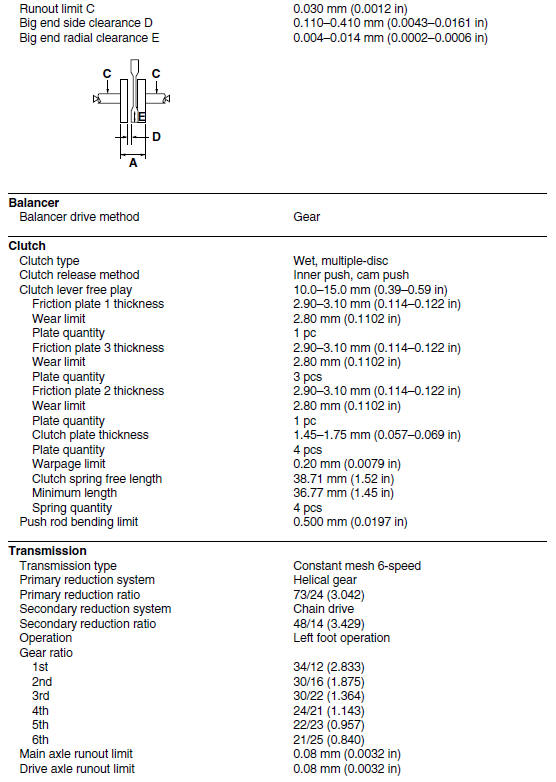

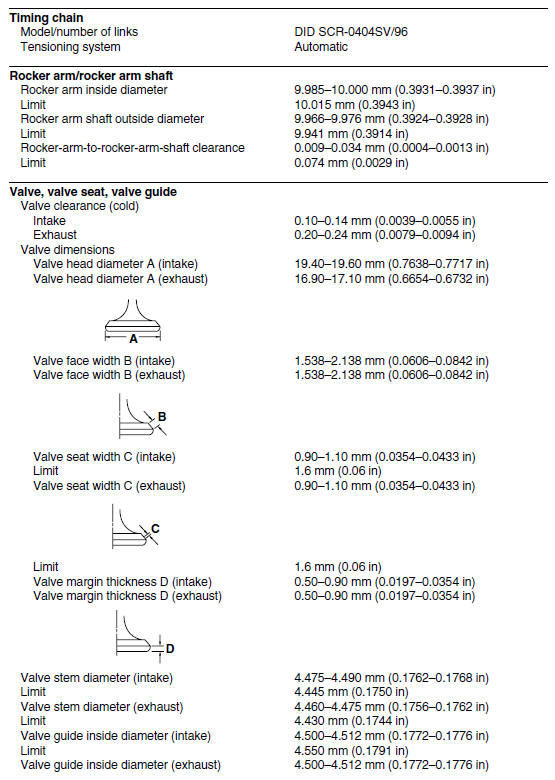

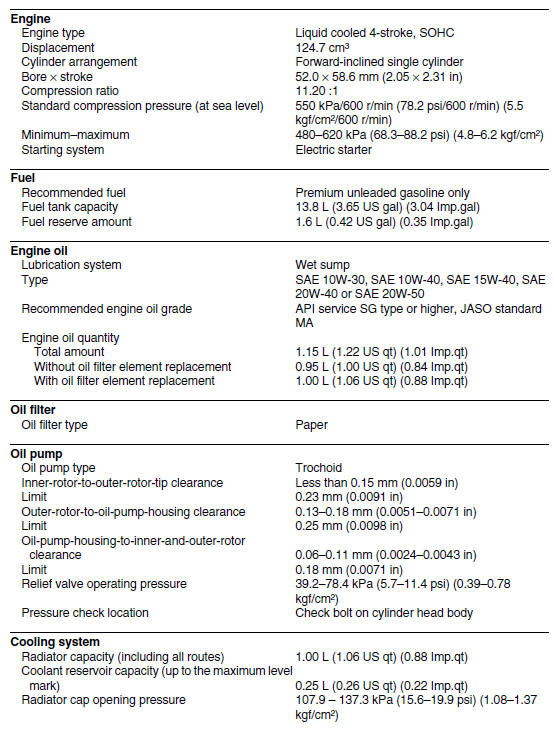

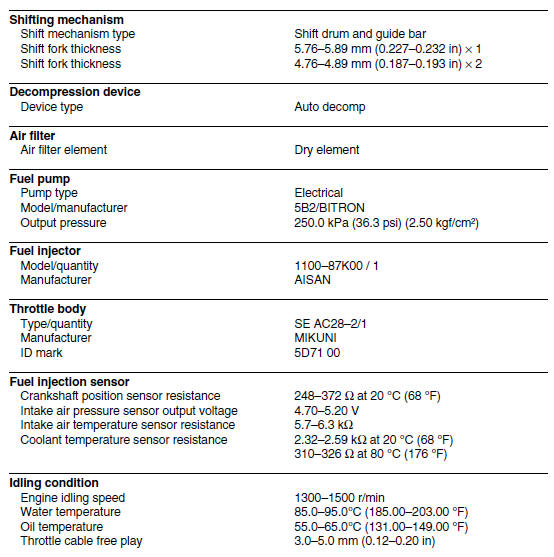

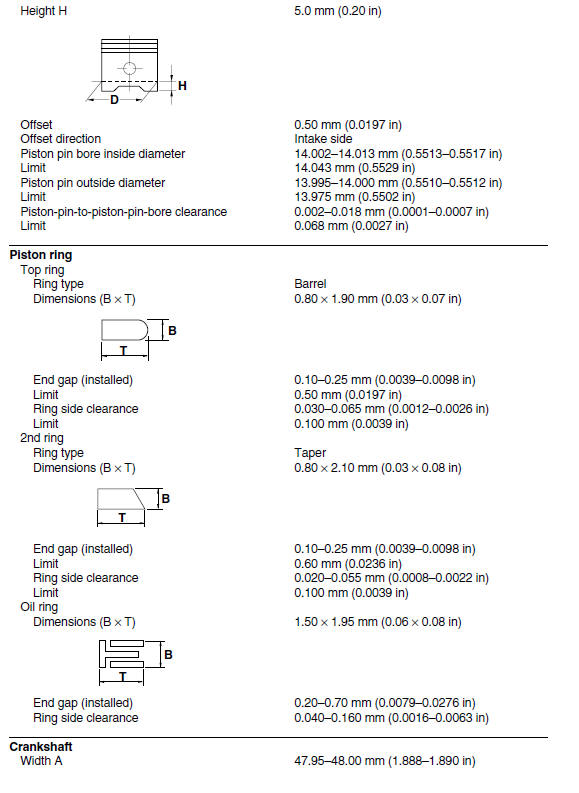

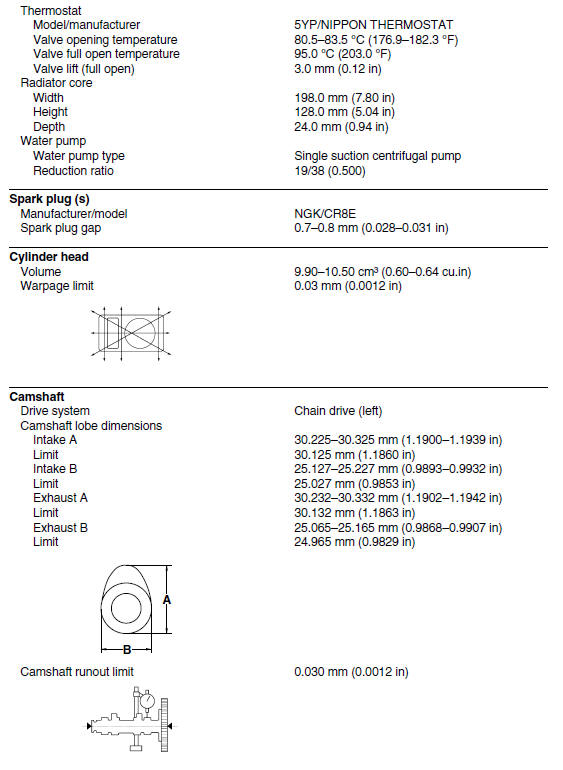

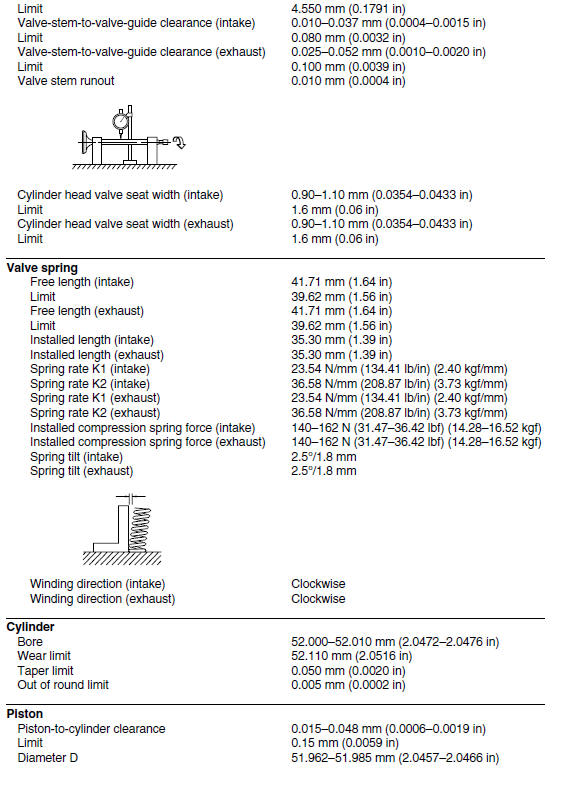

Engine specifications


Engine specifications


Engine specifications


Engine specifications


Engine specifications


Engine specifications


Engine specifications
