Yamaha YZF-R125 Service Manual: Electrical specifications

Yamaha YZF-R125 Service Manual / Specifications / Electrical specifications

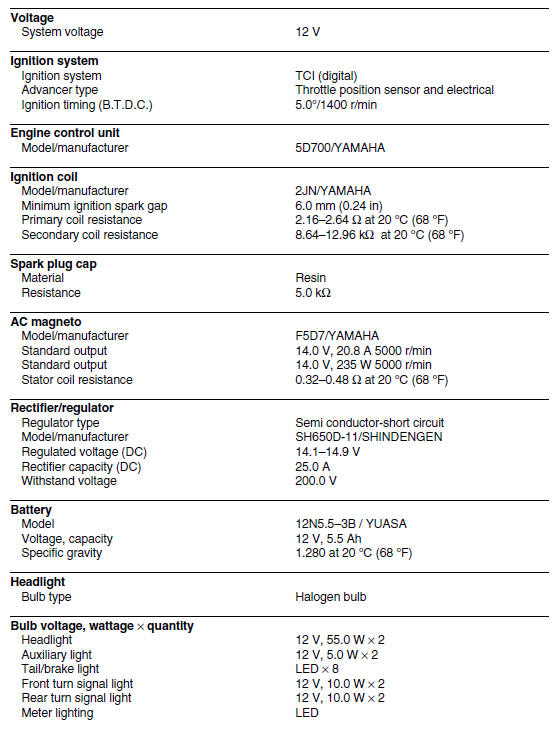

Electrical specifications

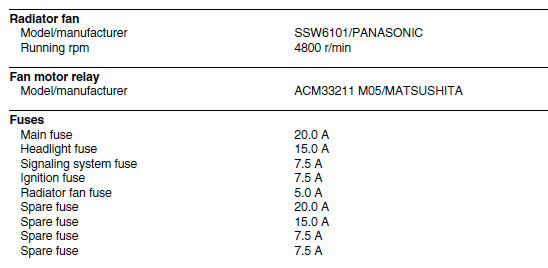

Electrical specifications

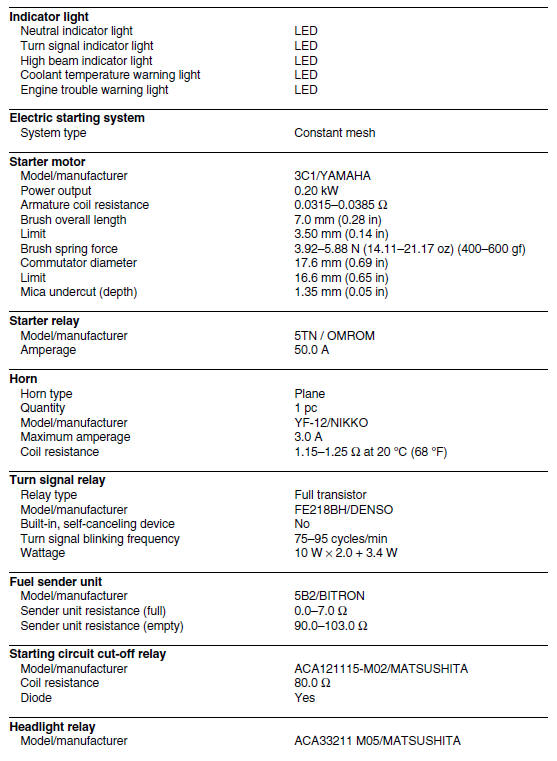

Electrical specifications


    Chassis specifications
    ...

    Tightening torques
    ...

    Other materials:

    Circuit diagram
    2. Crankshaft position sensor 4. Main fuse 5. Main switch 6. Radiator fan motor fuse 8. Sidestand switch 9. Battery 17.Engine stop switch 19.Intake air pressure sensor 20.Intake air temperature sensor 21.Throttle position sensor 22.Coolant temperature sensor 23.Lean angle sensor 24.S ...

    Indicator and warning lights
    Indicator and warning lights Neutral indicator light"" Turn signal indicator light"" High beam indicator light"" Engine trouble warning light"" Coolant temperature warning light"" Turn signal indicator light"" This indicator light flashes when the turn signal switch is pushed t ...

    Starting circuit cut-off system operation
    If the engine stop switch is set to " " and the main switch is set to "ON" (both switches are closed), the starter motor can only operate if at least one of the following conditions is met: The transmission is in neutral (the neutral switch is closed). The clutch lever is pulled to the ...
