Yamaha YZF-R125 Service Manual: Chassis tightening torques

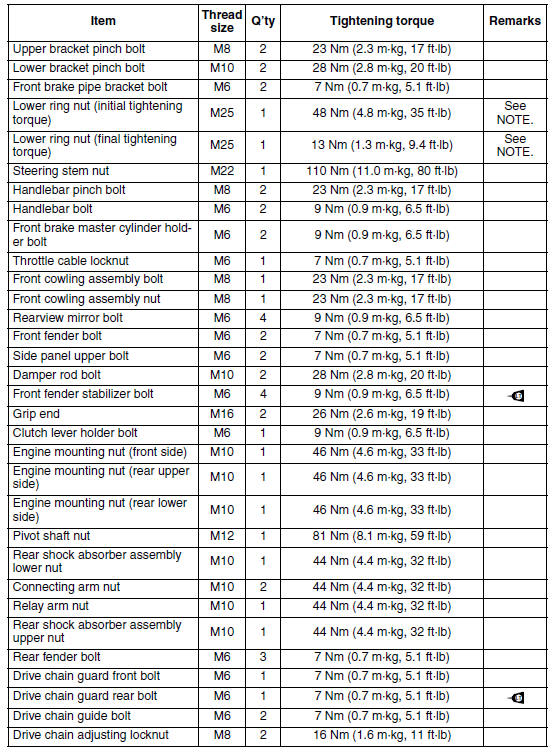

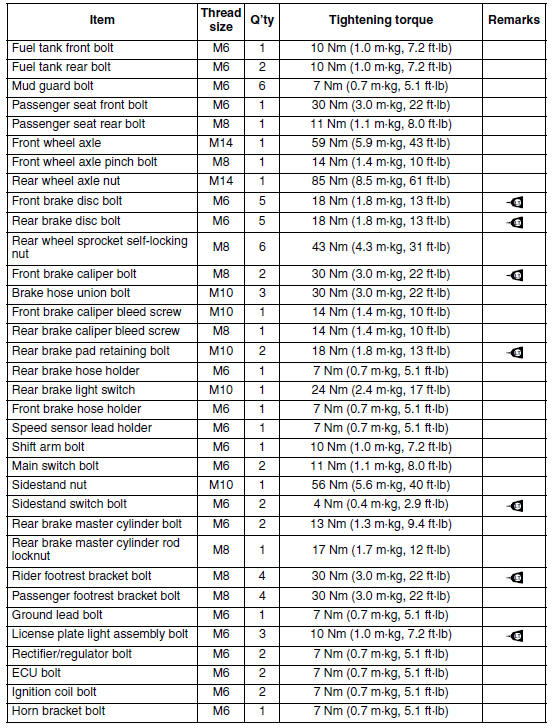

Chassis tightening torques


Chassis tightening torques


NOTE:

  • First, tighten the lower ring nut to approximately 48 Nm (4.8 m.kg, 35 ft.lb) with a torque wrench, then loosen the lower ring nut completely.
  • Retighten the lower ring nut to 13 Nm (1.3 m.kg, 9.4 ft.lb) with a torque wrench.
    Engine tightening torques
    Cylinder head tightening sequence: Generator cover tightening sequence: Clutch cover tightening sequence: Crankcase tightening sequence: A. Left crankcase B. Right crankcase ...

    Lubrication points and lubricant types
    Engine Chassis ...
