Yamaha YZF-R125 Service Manual: General tightening torque specifications

Yamaha YZF-R125 Service Manual / Specifications / Tightening torques / General tightening torque specifications

This chart specifies tightening torques for standard fasteners with a standard ISO thread pitch.

Tightening torque specifications for special components or assemblies are provided for each chapter of this manual. To avoid warpage, tighten multi-fastener assemblies in a crisscross pattern and progressive stages until the specified tightening torque is reached. Unless otherwise specified, tightening torque specifications require clean, dry threads. Components should be at room temperature.


A. Distance between flats

B. Outside thread diameter

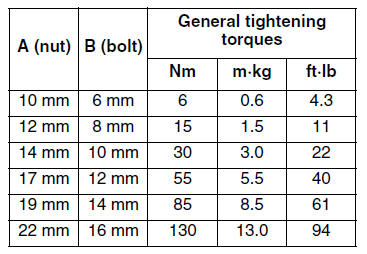

General tightening torque specifications


    Tightening torques
    ...

    Engine tightening torques
    Cylinder head tightening sequence: Generator cover tightening sequence: Clutch cover tightening sequence: Crankcase tightening sequence: A. Left crankcase B. Right crankcase ...
