Yamaha YZF-R125 Service Manual: Water pump
- Disassembling the water pump
- Checking the water pump
- Assembling the water pump

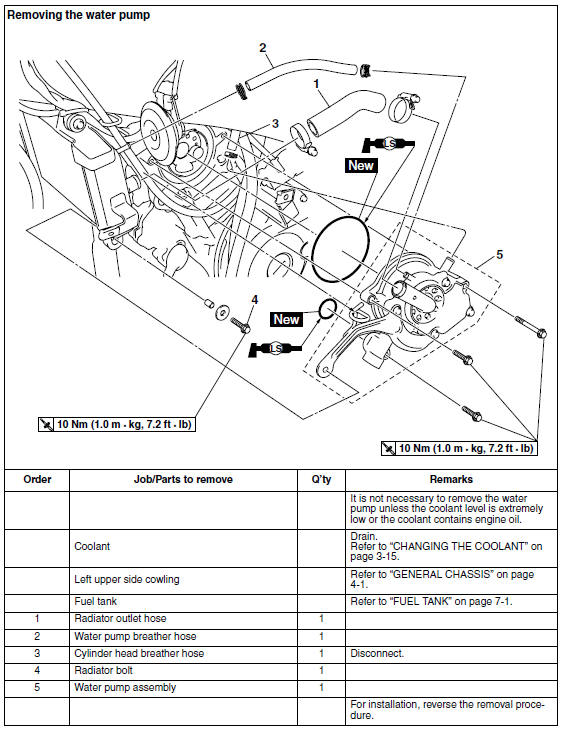

- Installing the water pump
Installing the thermostat
1. Install:
Thermostat
NOTE:
Install the thermostat with its breather hole "a"
facing up.
2. Install:
Copper washer
Coolant temperature sensor
CAUTION:Use extreme care when ...

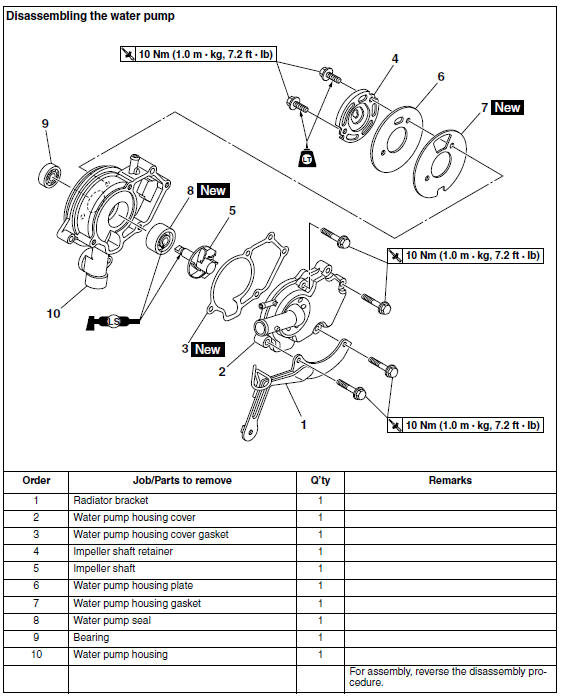

Disassembling the water pump
1. Remove:
Water pump seal "1"
NOTE:
Remove the water pump seal from the inside of
the water pump housing "2".
2. Remove:
Bearing "1"
NOTE:
Remove the bearing from the outside of ...
