1. Install:

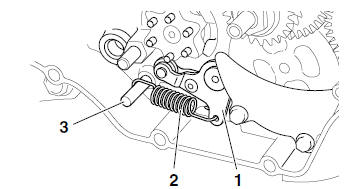

  • Stopper lever "1"
  • Stopper lever spring "2"

NOTE:

  • Install the stopper lever spring as shown in the illustration.
  • Hook the ends of the stopper lever spring onto the stopper lever and the crankcase boss "3".
  • Mesh the stopper lever with the shift drum segment assembly.

Installing the shift shaft


2. Install:

  • Shift shaft "1"

NOTE:

Hook the end of the shift shaft spring onto the shift shaft spring stopper "2".

    Checking the shift shaft
    1. Check: Shift shaft Bends/damage/wear Replace. Shift shaft spring Damage/wear Replace. Checking the stopper lever 1. Check: Stopper lever Bends/damage Replace. Roller ...
