Yamaha YZF-R125 Service Manual: Checking the spark plug cap

1. Check:

Spark plug cap resistance Out of specification Replace.


a. Remove the spark plug cap from the spark plug lead.

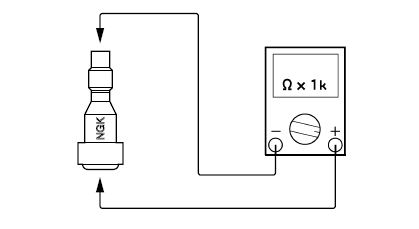

b. Connect the pocket tester ( × 1k)
to the spark plug cap as shown.


Checking the spark plug cap


c. Measure the spark plug cap resistance.

    Checking the diode
    1. Check: Diode Out of specification Replace. NOTE: The pocket tester or the analog pocket tester readings are shown in the following table. a. Disconnect the diode from the wire harness. ...

    Checking the ignition coil
    1. Check: Primary coil resistance Out of specification  Replace. a. Disconnect the ignition coil connectors from the ignition coil terminals. b. Connect the pocket tester ( × 1) to ...
