Yamaha YZF-R125 Service Manual: Checking the diode

1. Check:

Diode Out of specification Replace.


NOTE:

The pocket tester or the analog pocket tester readings are shown in the following table.


Checking the diode


a. Disconnect the diode from the wire harness.

b. Connect the pocket tester ( × 1)

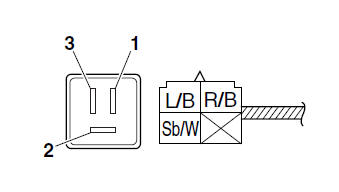

to the diode terminals as shown.

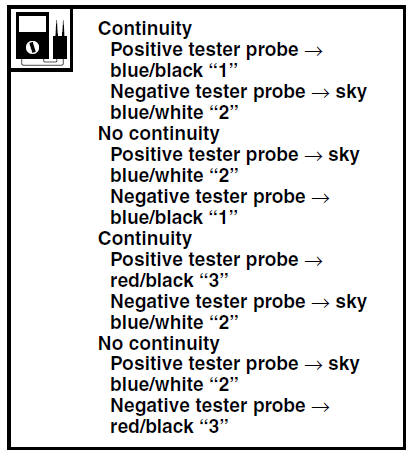

c. Check the diode for continuity.

d. Check the diode for no continuity.

    Checking the turn signal relay
    1. Check: Turn signal relay input voltage Out of specification →The wiring circuit from the main switch to the turn signal relay coupler is faulty and must be repaired. a. Connect the poc ...

    Checking the spark plug cap
    1. Check: Spark plug cap resistance Out of specification Replace. a. Remove the spark plug cap from the spark plug lead. b. Connect the pocket tester ( × 1k) to the spark plug cap as ...
