Yamaha YZF-R125 Service Manual: Checking the cylinder head
1. Eliminate:
- Combustion chamber carbon deposits (with a rounded scraper)
NOTE:
Do not use a sharp instrument to avoid damaging or scratching:
- Spark plug bore threads
- Valve seats
2. Check:
- Cylinder head
Damage/scratches
Replace. - Cylinder head water jacket
Mineral deposits/rust
Eliminate.
3. Measure:
- Cylinder head warpage
Out of specification
Resurface
the cylinder head.

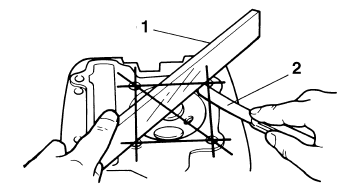

a. Place a straightedge "1" and a thickness gauge "2" across the cylinder head.
b. Measure the warpage.
c. If the limit is exceeded, resurface the cylinder head as follows.
d. Place a 400-600 grit wet sandpaper on the surface plate and resurface the cylinder head using a figure-eight sanding pattern.
NOTE:
To ensure an even surface, rotate the cylinder head several times.
