Yamaha YZF-R125 Service Manual: Checking the cylinder head breather hose

Yamaha YZF-R125 Service Manual / Periodic checks and adjustments / Engine / Checking the cylinder head breather hose

1. Remove:

  • Left side panel Refer to "GENERAL CHASSIS" on page 4-1.

2. Check:

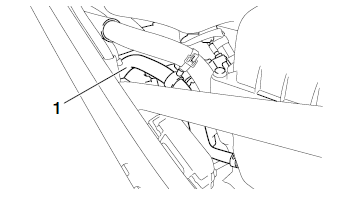

  • Cylinder head breather hose "1" Cracks/damage → Replace.

    Loose connection → Connect properly.

CAUTION:

Make sure the cylinder head breather hose is routed correctly.

Checking the cylinder head breather hose


3. Install:

  • Left side panel Refer to "GENERAL CHASSIS" on page 4-1.
    Checking the fuel line
    1. Remove: Left side panel Refer to "GENERAL CHASSIS" on page 4-1. 2. Lift the fuel tank. (Do not disconnect the fuel hose, drain hose 3. Check: Fuel hose "1" Cracks/damage → Replac ...

    Checking the exhaust system
    1. Check: Exhaust assembly "1" Cracks/damage → Replace. Exhaust pipe gasket "2" Exhaust gas leaks → Replace. 2. Check: Tightening torques of the exhaust pipe nuts "3" an ...
