Yamaha YZF-R125 Service Manual: Steering head

Steering head


Steering head


Installing the front fork legs
The following procedure applies to both of the front fork legs. 1. Install: Front fork leg Temporarily tighten the upper and lower bracket pinch bolts. NOTE: Make sure the inner tube end ...

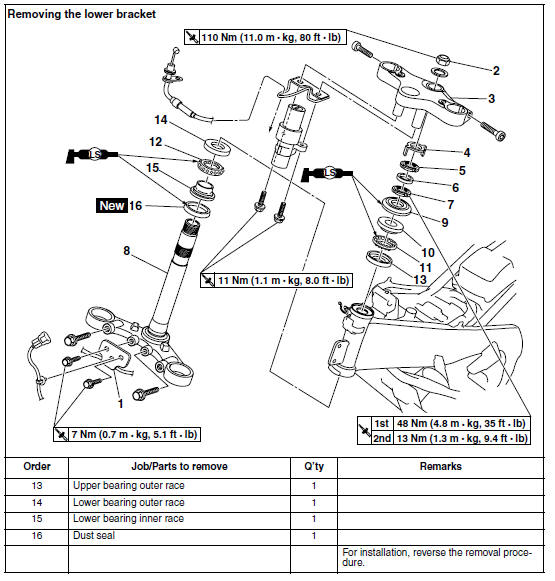

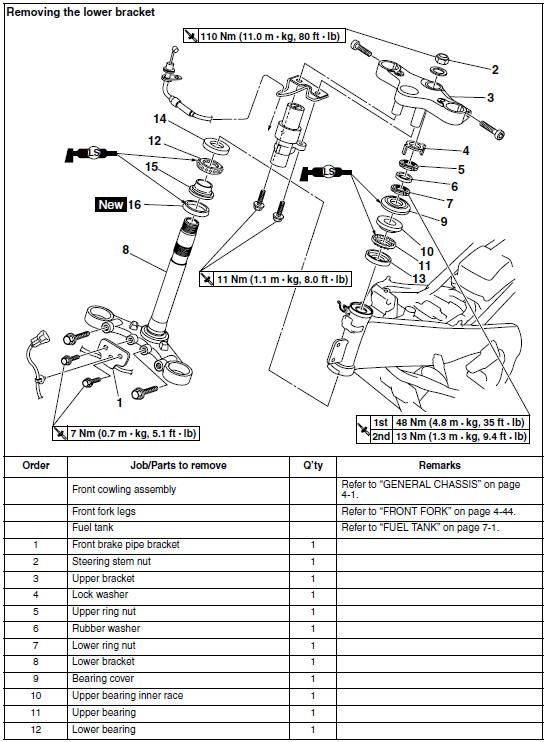

Removing the lower bracket
1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. 2. Remove: Upper ring nut Rubber washer Lower r ...
