Yamaha YZF-R125 Service Manual: Removing the lower bracket

Yamaha YZF-R125 Service Manual / Chassis / Steering head / Removing the lower bracket

1. Stand the vehicle on a level surface.

WARNING

Securely support the vehicle so that there is no danger of it falling over.

2. Remove:

  • Upper ring nut
  • Rubber washer
  • Lower ring nut "1"
  • Lower bracket

NOTE:

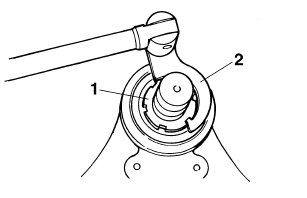

Remove the lower ring nut with the steering nut wrench "2".


WARNING

Securely support the lower bracket so that there is no danger of it falling.

Removing the lower bracket


    Steering head
    ...

    Checking the steering head
    1. Wash: Bearings Bearing races 2. Check: Bearings Bearing races Damage/pitting →Replace. 3. Replace: Bearings Bearing races a. Remove the bearing races from the ste ...
