Yamaha YZF-R125 Service Manual: Shift shaft

Shift shaft


Installing the oil pump
1. Install: Oil pump assembly CAUTION:After tightening the screws, make sure the oil pump turns smoothly. ...

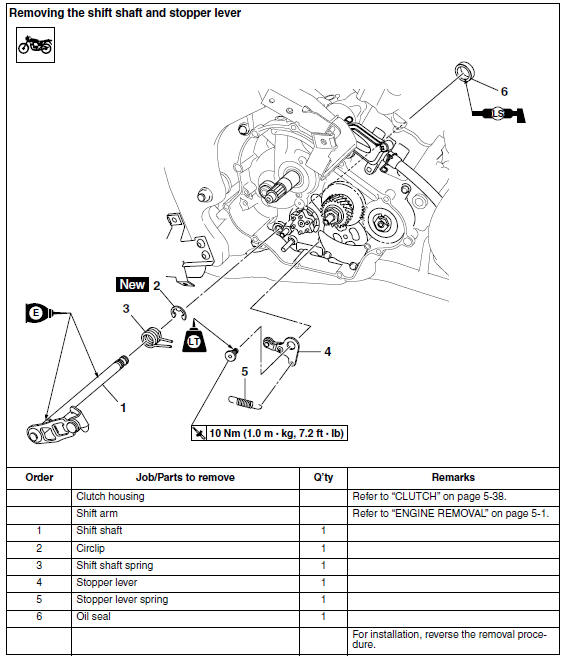

Checking the shift shaft
1. Check: Shift shaft Bends/damage/wear Replace. Shift shaft spring Damage/wear Replace. Checking the stopper lever 1. Check: Stopper lever Bends/damage Replace. Roller ...

Other materials:

Installing the shift forks and shift drum assembly
1. Install: Shift fork-L "1" Shift fork-C "2" Shift fork-R "3" Shift drum assembly "4" Springs Shift fork guide bar "5" NOTE: The embossed marks on the shift forks should face towards the right side of the engine and be in the following sequence: "R", "C", "L". 2. Check: Tr ...

Checking the drive chain
1. Measure: 15-link section "a" of the drive chain Out of specification Replace the drive chain. a. Measure the length "a" between the inner sides of the pins and the length "b" between the outer sides of the pins on a 15-link section of the drive chain as shown in the illustration. ...

Checking and adjusting the steering head
1. Stand the vehicle on a level surface WARNINGSecurely support the vehicle so that there is no danger of it falling over. NOTE: Place the vehicle on a suitable stand so that the front wheel is elevated. 2. Check: Steering head Grasp the bottom of the front fork legs an ...
