Yamaha YZF-R125 Service Manual: Checking the shift shaft

Yamaha YZF-R125 Service Manual / Engine / Shift shaft / Checking the shift shaft

1. Check:

  • Shift shaft Bends/damage/wear Replace.

  • Shift shaft spring Damage/wear Replace.

Checking the shift shaft


Checking the stopper lever

1. Check:

  • Stopper lever Bends/damage Replace.


    Roller turns roughly Replace
    the stopper lever.

  • Stopper lever spring Damage/wear Replace.

    Shift shaft
    ...

    Installing the shift shaft

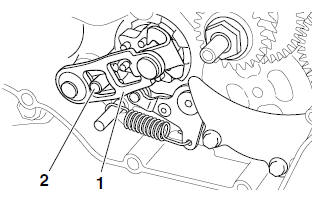

    1. Install: Stopper lever "1" Stopper lever spring "2" NOTE: Install the stopper lever spring as shown in the illustration. Hook the ends of the stopper lever spring onto the stoppe ...
