Yamaha YZF-R125 Service Manual: Rear brake
- Introduction
- Checking the rear brake disc

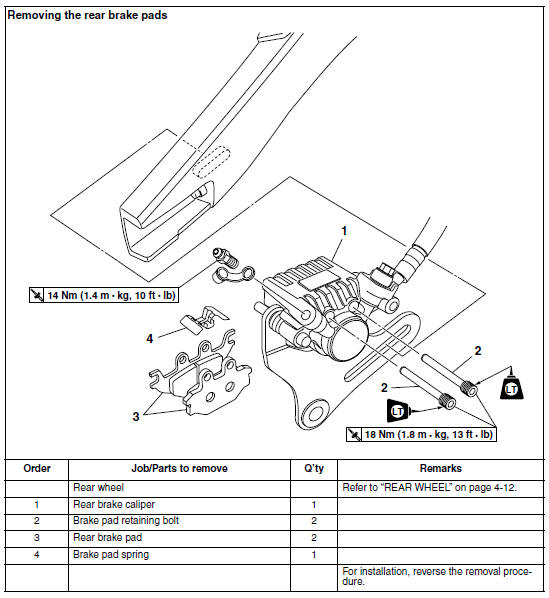

- Replacing the rear brake pads

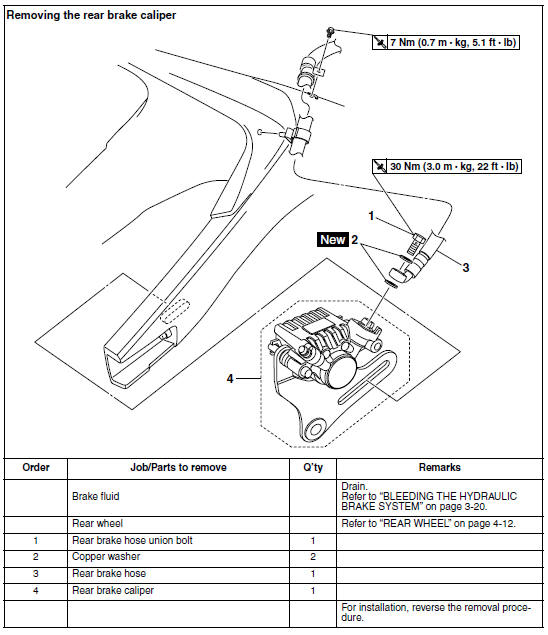

- Removing the rear brake caliper

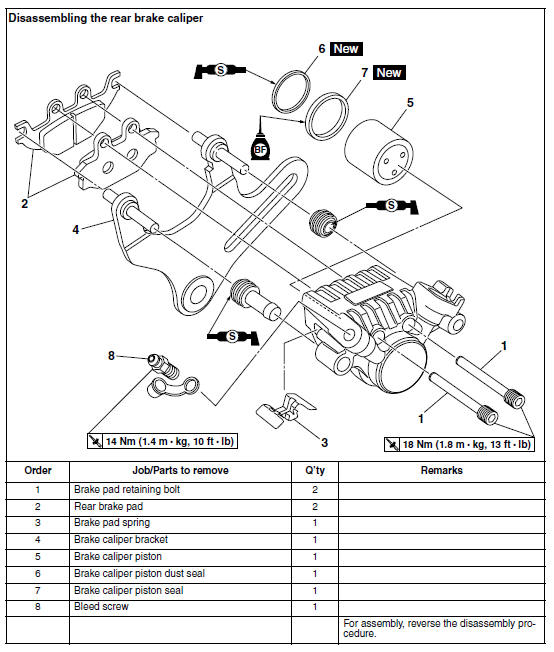

- Disassembling the rear brake caliper
- Checking the rear brake caliper
- Assembling the rear brake caliper
- Installing the rear brake caliper

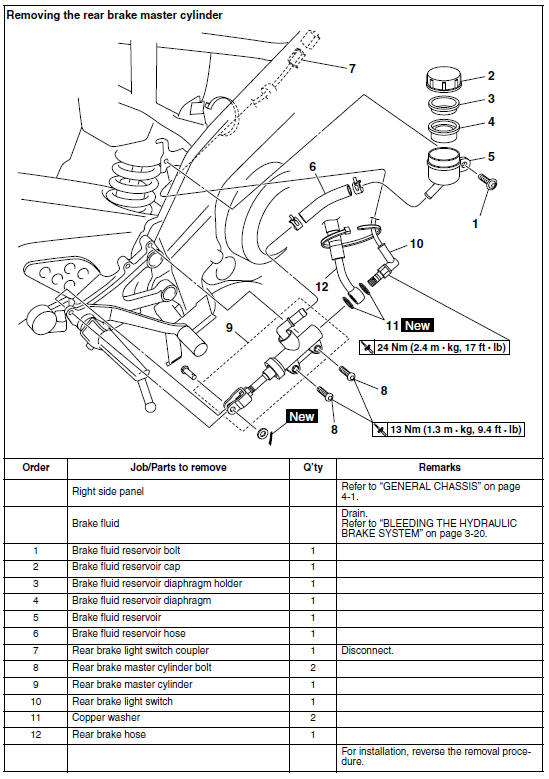

- Removing the rear brake master cylinder

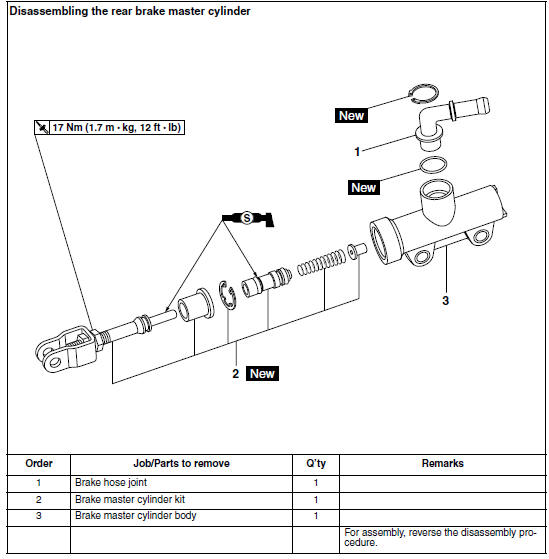

- Checking the rear brake master cylinder
- Assembling the rear brake master cylinder
- Installing the rear brake master cylinder
Installing the front brake master cylinder
1. Install:
Brake master cylinder "1"
Brake master cylinder holder "2"
NOTE:
Install the brake master cylinder holder with the
arrow mark "a" pointing forward.
Align the end of the br ...
Introduction
WARNINGDisc brake components rarely require
disassembly.
Therefore, always follow these preventive
measures:
Never disassemble brake components unless
absolutely necessa ...
