Yamaha YZF-R125 Service Manual: Oil pump

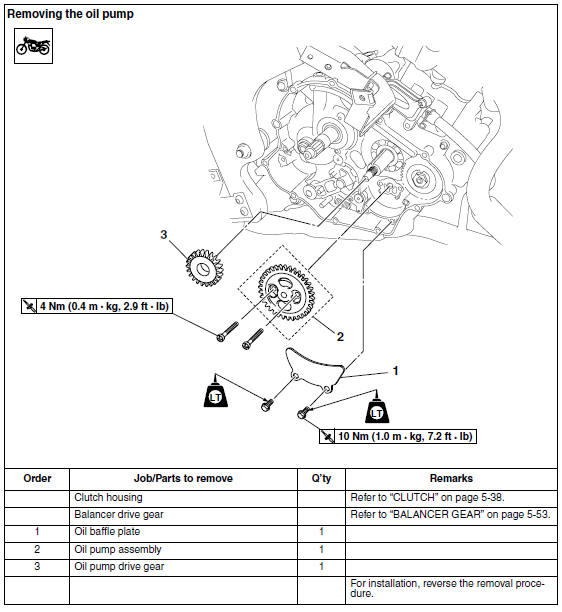

Oil pump

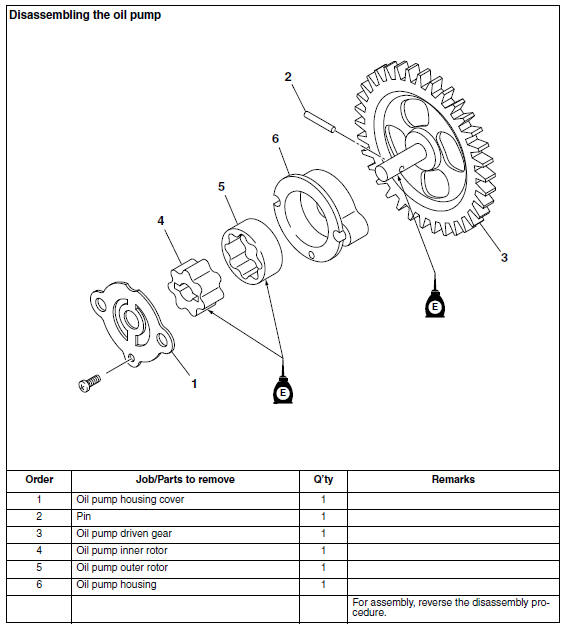

Oil pump


Installing the clutch
1. Install: Conical spring washer "1" NOTE: Install the conical spring washer as shown in the illustration. 2. Install: Clutch housing Thrust washer "1" NOTE: Be sure to instal ...

Checking the oil pump
1. Check: Oil pump drive gear Oil pump driven gear Oil pump housing Oil pump housing cover Cracks/damage/wear Replace the defective part(s). 2. Measure: Inner-rotor-to-outer-r ...
