Yamaha YZF-R125 Service Manual: Engine removal

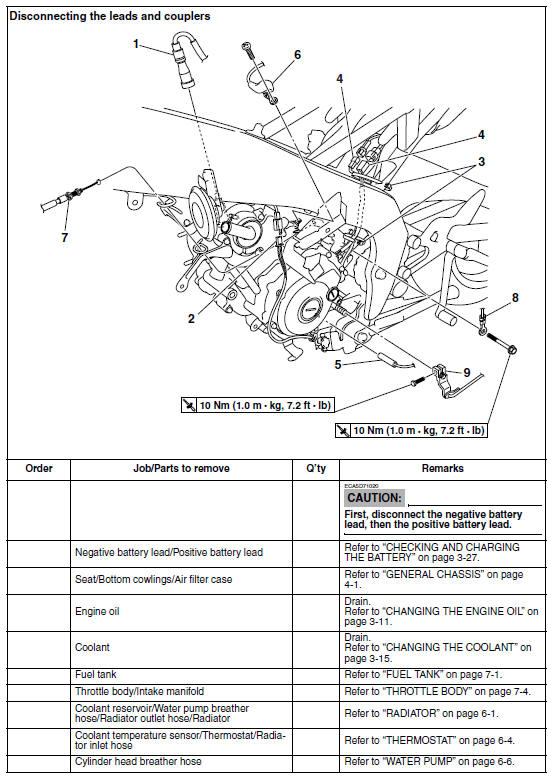

Engine removal


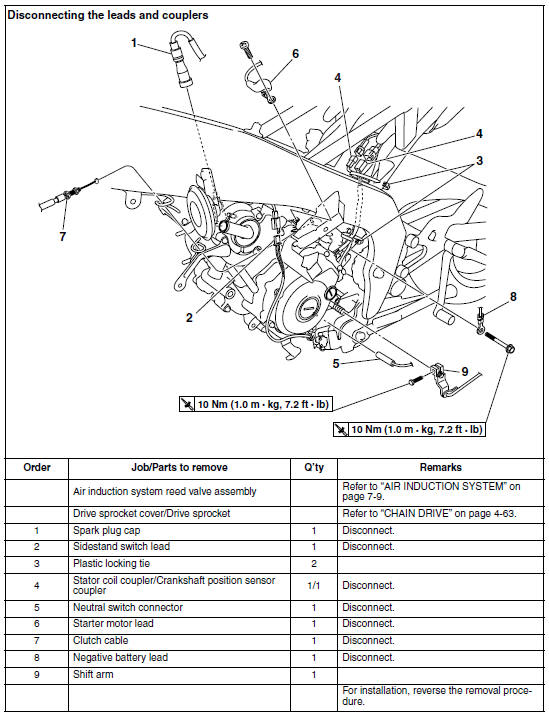

Engine removal


Engine removal


Engine removal


Engine
...

Installing the engine

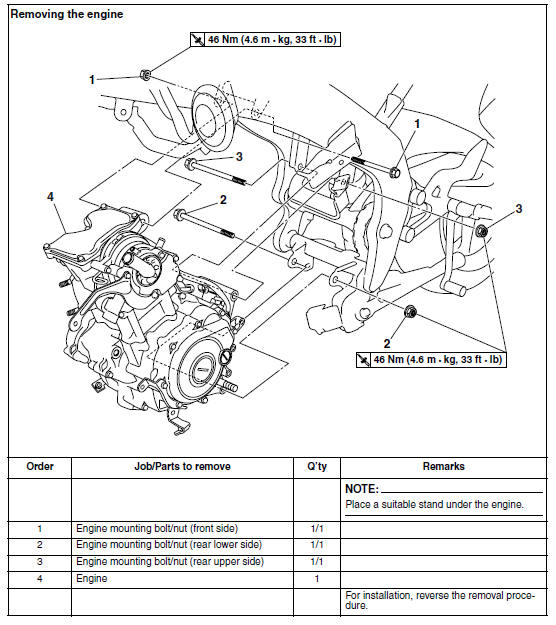

1. Install: Engine "1" Engine mounting bolt (rear lower side) "2" Engine mounting nut (rear lower side) "3" Engine mounting bolt (rear upper side) "4" Engine mounting nut (rear upper side) ...

Other materials:

Checking the camshaft sprocket and timing chain guide
1. Check: Camshaft sprocket More than 1/4 tooth wear "a" Replace the camshaft sprocket, timing chain and crankshaft as a set. a. 1/4 tooth b. Correct 1. Timing chain roller 2. Camshaft sprocket 2. Check: Timing chain guide (exhaust side) Damage/wear Replace. ...

Installing the thermostat
1. Install: Thermostat NOTE: Install the thermostat with its breather hole "a" facing up. 2. Install: Copper washer Coolant temperature sensor CAUTION:Use extreme care when handling the coolant temperature sensor. Replace any part that was dropped or subjected to ...
