Yamaha YZF-R125 Service Manual: Checking the horn

1. Check:

Horn resistance Out of specification Replace.


a. Disconnect the horn connectors from the horn terminals.

b. Connect the pocket tester ( × 1) to the horn terminals.


  • Positive tester probe
    horn terminal "1"
  • Negative tester probe
    horn terminal "2"

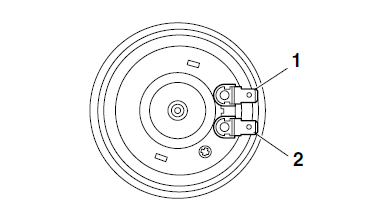

Checking the horn


c. Measure the horn resistance.

2. Check:

Horn sound Faulty sound Adjust or replace.


a. Connect a battery (12 V) to the horn.

b. Turn the adjusting screw in direction "a" or "b" until the specified horn sound is obtained.

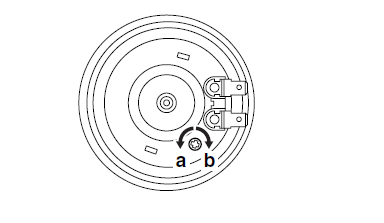

Checking the horn


    Checking the rectifier/regulator
    1. Check: Rectifier/regulator output voltage Out of specification → Replace the rectifier/ regulator. a. Set the engine tachometer to the spark plug lead. b. Connect the pocket tester ...

    Checking the fuel sender
    1. Drain the fuel from the fuel tank. 2. Check: Fuel sender resistance Out of specification → Replace the fuel sender. a. Connect the pocket tester ( × 10) to the fuel sender c ...
