Checking the front brake caliper


1. Check:

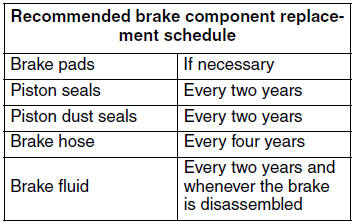

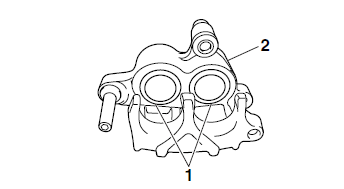

  • Brake caliper pistons "1" Rust/scratches/wear Replace the
    brake caliper assembly.
  • Brake caliper body "2" Cracks/damage Replace the brake
    caliper assembly.
  • Brake fluid delivery passages (brake caliper body) Obstruction Blow out with
    compressed air.
WARNING

Whenever a brake caliper is disassembled, replace the brake caliper piston dust seals and piston seals.

Checking the front brake caliper


2. Check:

  • Brake caliper bracket Cracks/damage Replace.

    Removing the front brake caliper
    NOTE: Before disassembling the brake caliper, drain the brake fluid from the entire brake system. 1. Remove: Brake hose union bolt "1" Copper washers "2" Brake hose "3" NOTE: Put the en ...

    Assembling the front brake caliper
    WARNING Before installation, all internal brake components should be cleaned and lubricated with clean or new brake fluid. Never use solvents on internal brake components as ...
