Yamaha YZF-R125 Service Manual: Troubleshooting

NOTE:

  • Before troubleshooting, remove the following part(s):

1. Rider seat

2. Fuel tank

3. Right upper side cowling

4. Passenger seat

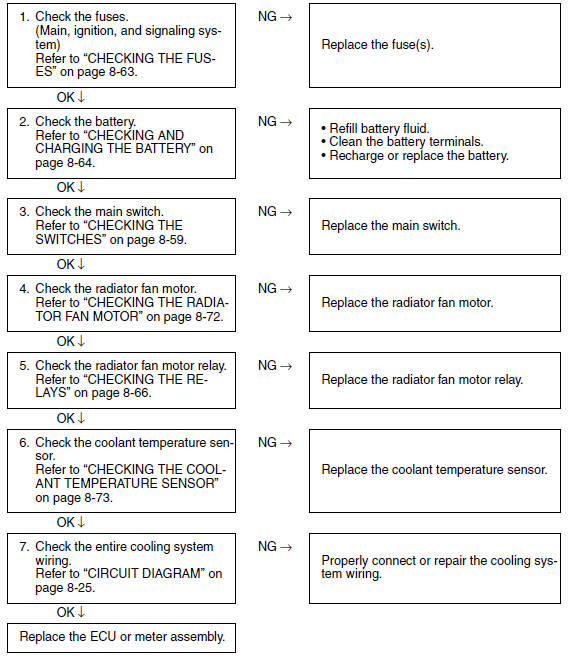

Troubleshooting


    Circuit diagram
    4. Main fuse 5. Main switch 6. Radiator fan motor fuse 9. Battery 22.Coolant temperature sensor 32.Radiator fan motor relay 33.Radiator fan motor 59.Coolant temperature warning light 64.Ig ...

    Fuel injection system
    ...
