Yamaha YZF-R125 Service Manual: Installing the shift arm

1. Install:

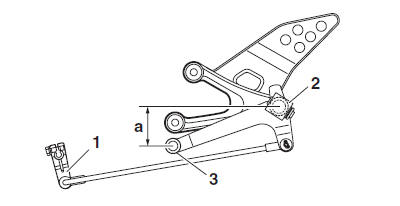

  • Shift arm "1"

NOTE:

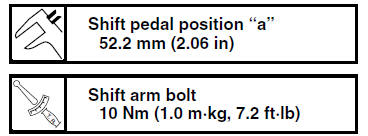

Make sure that the distance "a" between the center of the left rider footrest "2" and the center of the shift pedal "3" is within specification.


Installing the shift arm


    Installing the engine
    1. Install: Engine "1" Engine mounting bolt (rear lower side) "2" Engine mounting nut (rear lower side) "3" Engine mounting bolt (rear upper side) "4" Engine mounting nut (rear upper side) ...

    Installing the exhaust assembly
    1. Install: Exhaust assembly "1" Exhaust pipe nuts "2" Exhaust assembly bolts "3" "4" NOTE: Do not fully tighten the nuts and bolts. 2. Tighten: Exhaust pipe nuts "2" Exhaust assem ...
