Yamaha YZF-R125 Service Manual: Electric starter

Electric starter


Electric starter


Installing the generator
1. Install: Woodruff key Generator rotor Washer Generator rotor nut NOTE: Clean the tapered portion of the crankshaft and the generator rotor hub. When installing the generator ro ...

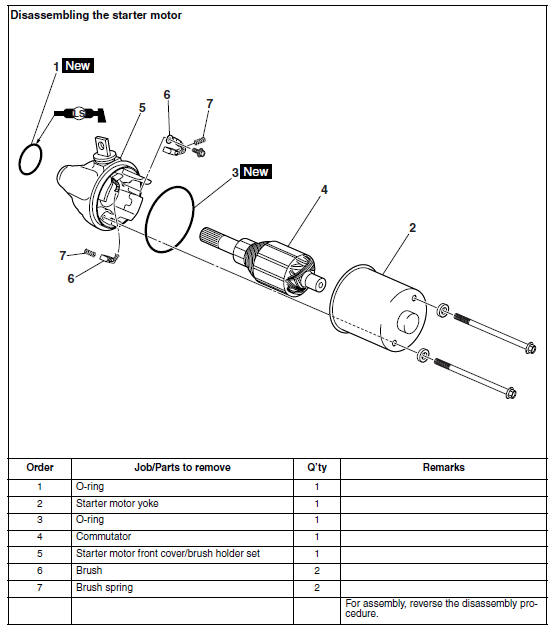

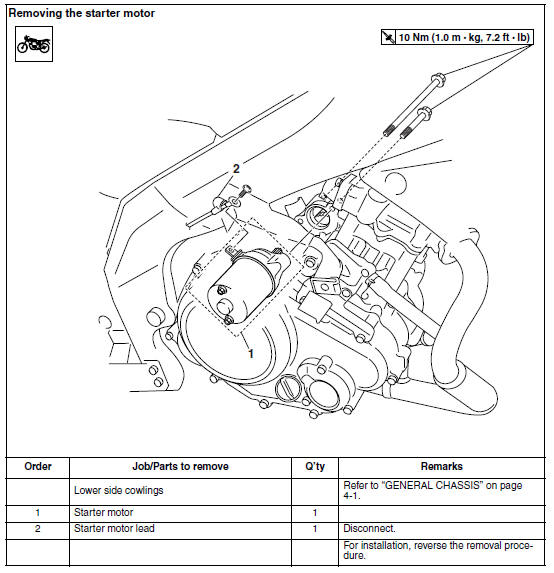

Checking the starter motor
1. Check: Commutator Dirt Clean with 600 grit sandpaper. 2. Measure: Commutator diameter "a" Out of specification Replace the starter motor. 3. Measure: Mica under ...
