Yamaha YZF-R125 Service Manual: Checking the stator coil

1. Disconnect:

  • Stator coil coupler (from the wire harness)

2. Check:

Stator coil resistance Out of specification → Replace the crankshaft position sensor/stator assembly.

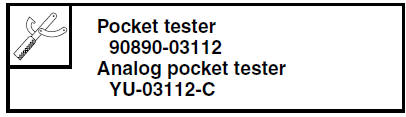

a. Connect the pocket tester ( ×

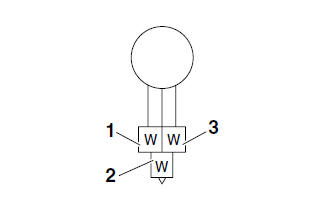

1) to the stator coil coupler as shown.



Checking the stator coil

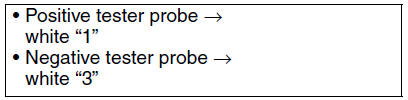

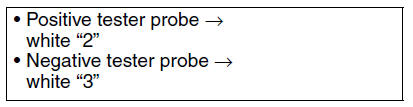

b. Measure the stator coil resistance.

    Checking the starter motor operation
    1. Check: Starter motor operation Does not operate → Perform the electric starting system troubleshooting, starting with step 4. Refer to "TROUBLESHOOTING" on page 8-9. a. Con ...

    Checking the rectifier/regulator
    1. Check: Rectifier/regulator output voltage Out of specification → Replace the rectifier/ regulator. a. Set the engine tachometer to the spark plug lead. b. Connect the pocket tester ...
