Yamaha YZF-R125 Service Manual: Checking the exhaust system
1. Check:

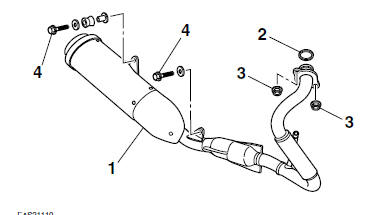

- Exhaust assembly "1" Cracks/damage → Replace.
- Exhaust pipe gasket "2" Exhaust gas leaks → Replace.
2. Check:

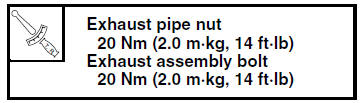

- Tightening torques of the exhaust pipe nuts
"3" and exhaust assembly bolts "4"
Checking the cylinder head breather hose
1. Remove:
Left side panel
Refer to "GENERAL CHASSIS" on page 4-1.
2. Check:
Cylinder head breather hose "1"
Cracks/damage → Replace.
Loose connection → Connect properly ...
Checking the coolant level
1. Stand the vehicle on a level surface.
NOTE:
Place the vehicle on a suitable stand.
Make sure the vehicle is upright.
2. Check:
Coolant level
The coolant level should be between the
max ...
