1. Remove:

  • Right lower side cowling
  • Left lower side cowling Refer to "GENERAL CHASSIS" on page 4-1.

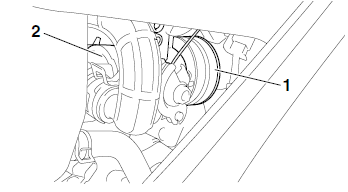

2. Check:

  • Throttle body joint "1"
  • Air filter case joint "2" Cracks/damage Replace.

Checking the throttle body joint and air filter case joint


3. Install:

  • Right lower side cowling
  • Left lower side cowling Refer to "GENERAL CHASSIS" on page 4-1.
    Cleaning the air filter element
    NOTE: There is a check hose "1" at the bottom of the air filter case. If dust and/or water collects in this hose, clean the air filter element and air filter case. 1. Remove: Rider seat ...

    Checking the fuel line
    1. Remove: Left side panel Refer to "GENERAL CHASSIS" on page 4-1. 2. Lift the fuel tank. (Do not disconnect the fuel hose, drain hose 3. Check: Fuel hose "1" Cracks/damage → Replac ...
