Yamaha YZF-R125 Service Manual: Checking the crankshaft

Yamaha YZF-R125 Service Manual / Engine / Crankshaft / Checking the crankshaft

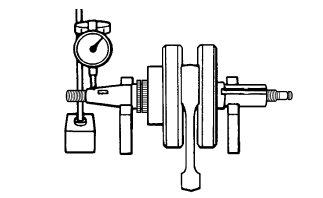

1. Measure:

  • Crankshaft runout Out of specification Replace
    the crankshaft, bearing or both.

NOTE:

Turn the crankshaft slowly.


Checking the crankshaft


2. Measure:

  • Big end side clearance Out of specification Replace
    the crankshaft.

3. Measure:

  • Crankshaft width Out of specification
    Replace the crankshaft.

3. Measure:

  • Crankshaft width Out of specification Replace the crankshaft.

4. Check:

  • Crankshaft sprocket Damage/wear Replace the
    crankshaft.
  • Bearing Cracks/damage/wear Replace the
    crankshaft.

5. Check:

  • Crankshaft journal Scratches/wear Replace the
    crankshaft.
  • Crankshaft journal oil passage Obstruction Blow out with
    compressed air.
    Removing the crankshaft
    1. Remove: Crankshaft "1" NOTE: Remove the crankshaft with the crankcase separating tool "2". Make sure the crankcase separating tool is centered over the crankshaft. CAUTIO ...
