Yamaha YZF-R125 Service Manual: Checking the radiator fan motor

1. Check:

  • Radiator fan motor Faulty/rough movement → Replace.

a. Disconnect the radiator fan motor coupler from the wire harness.

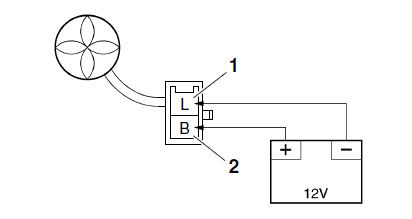

b. Connect the battery (DC 12 V) as shown.

  • Positive tester probe → blue "1"
  • Negative tester probe → black "2"

Checking the radiator fan motor


c. Measure the radiator fan motor movement.
