Yamaha YZF-R125 Service Manual: Troubleshooting

Any of the following fail to light: headlight, high beam indicator light, taillight, license plate light, auxiliary light or meter light.

NOTE:

  • Before troubleshooting, remove the following part(s):

1. Seats

2. Fuel tank

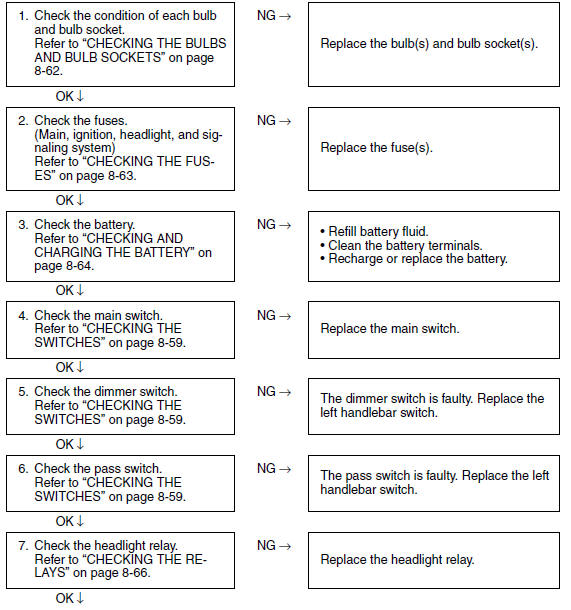

Troubleshooting


Troubleshooting

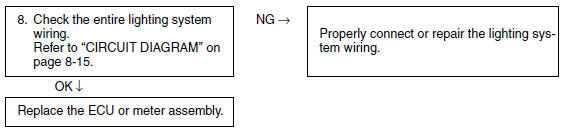

    Circuit diagram
    4. Main fuse 5. Main switch 9. Battery 25.ECU (engine control unit) 36.License plate light 37.Tail/brake light 44.Headlight relay 46.Pass switch 47.Dimmer switch 51.Headlight (low beam) ...
