Yamaha YZF-R125 Service Manual: Removing the rear brake caliper

Yamaha YZF-R125 Service Manual / Chassis / Rear brake / Removing the rear brake caliper

NOTE:

Before disassembling the brake caliper, drain the brake fluid from the entire brake system.

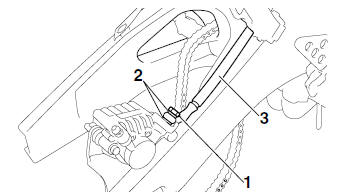

1. Remove:

  • Union bolt "1"
  • Copper washers "2"
  • Brake hose "3"

Removing the rear brake caliper


NOTE:

Put the end of the brake hose into a container and pump out the brake fluid carefully.

    Replacing the rear brake pads
    NOTE: When replacing the brake pads, it is not necessary to disconnect the brake hose or disassemble the brake caliper. 1. Remove: Brake pads Brake pad spring NOTE: To remove the inner b ...

    Disassembling the rear brake caliper
    1. Remove: Brake caliper piston "1" Brake caliper piston dust seal "2" Brake caliper piston seal "3" a. Blow compressed air into the brake hose joint opening "a" to force out the pisto ...
