Yamaha YZF-R125 Service Manual: Checking the oil pump

Yamaha YZF-R125 Service Manual / Engine / Oil pump / Checking the oil pump

1. Check:

  • Oil pump drive gear
  • Oil pump driven gear
  • Oil pump housing
  • Oil pump housing cover Cracks/damage/wear Replace the
    defective part(s).

2. Measure:

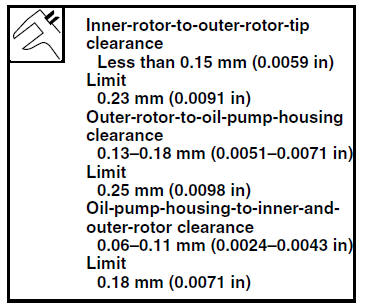

  • Inner-rotor-to-outer-rotor-tip clearance "a"
  • Outer-rotor-to-oil-pump-housing clearance "b"
  • - Oil-pump-housing-to-inner-rotor-and-outerrotor clearance "c"

Out of specification Replace
the oil pump.

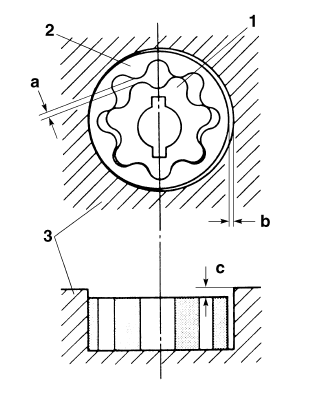

Checking the oil pump


1. Inner rotor

2. Outer rotor

3. Oil pump housing


3. Check:

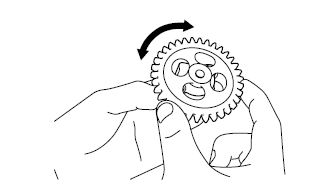

Oil pump operation Rough movement Repeat steps (1)
and (2) or replace the defective part(s).

Checking the oil pump


    Oil pump
    ...

    Assembling the oil pump
    1. Lubricate: Oil pump inner rotor Oil pump outer rotor Oil pump driven gear (with the recommended lubricant) 2. Install: Oil pump outer rotor Oil pump inner rotor "1" Oil pump dr ...
