Yamaha YZF-R125 Service Manual: Troubleshooting

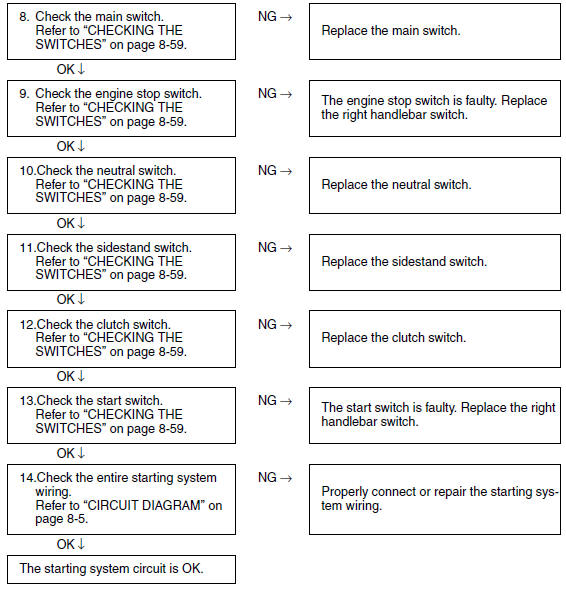

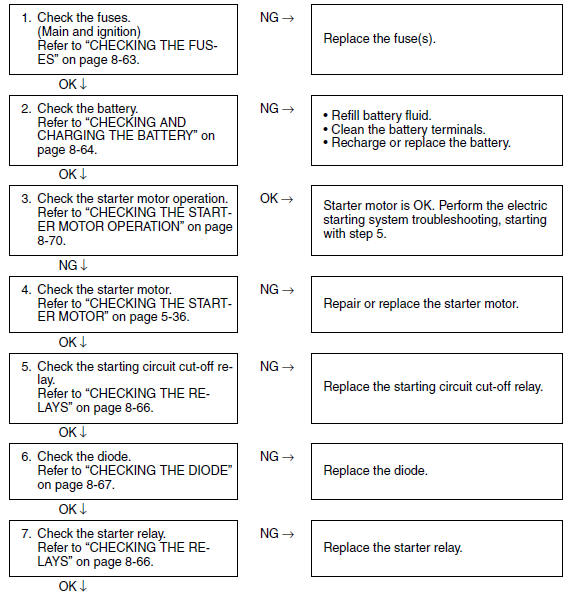

The starter motor fails to turn.

NOTE:

  • Before troubleshooting, remove the following part(s):

1. Seats

2. Fuel tank

3. Left lower side cowling

4. Left upper side cowling

Troubleshooting


Troubleshooting


    Starting circuit cut-off system operation
    If the engine stop switch is set to " " and the main switch is set to "ON" (both switches are closed), the starter motor can only operate if at least one of the following conditions is met: ...

    Charging system
    ...

    Other materials:

    Circuit diagram
    4. Main fuse 5. Main switch 9. Battery 14.Neutral switch 25.ECU (engine control unit) 31.Fuel sender 34.Rear brake light switch 35.Front brake light switch 37.Tail/brake light 38.Rear right turn signal light 39.Rear left turn signal light 40.Front right turn signal light 41.Front lef ...

    Starting circuit cut-off system operation
    If the engine stop switch is set to " " and the main switch is set to "ON" (both switches are closed), the starter motor can only operate if at least one of the following conditions is met: The transmission is in neutral (the neutral switch is closed). The clutch lever is pulled to the ...
