Yamaha YZF-R125 Service Manual: Removing the clutch

Yamaha YZF-R125 Service Manual / Engine / Clutch / Removing the clutch

1. Straighten the lock washer tab.

2. Loosen:

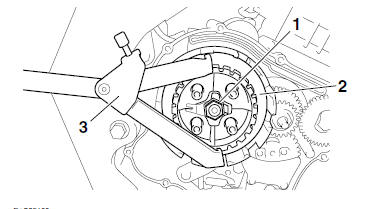

  • Clutch boss nut "1"

NOTE:

While holding the clutch boss "2" with the universal clutch holder "3", loosen the clutch boss nut.


Removing the clutch


    Clutch
    ...

    Checking the friction plates
    The following procedure applies to all of the friction plates. 1. Check: Friction plate Damage/wear Replace the friction plates as a set. 2. Measure: Friction plate thickness Ou ...
