Yamaha YZF-R125 Service Manual: General chassis

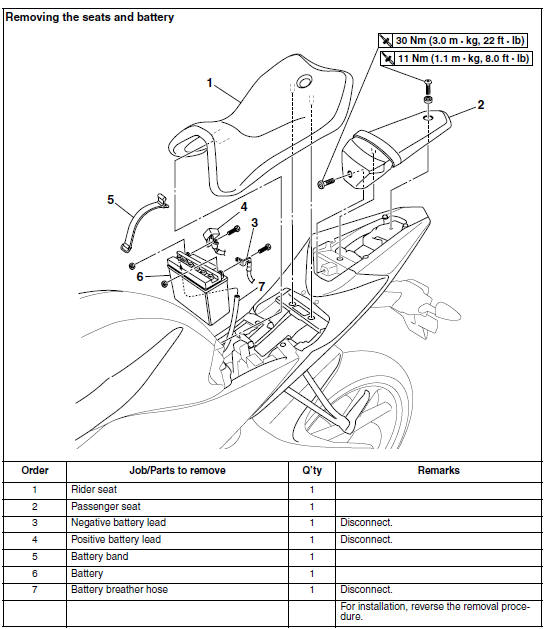

General chassis


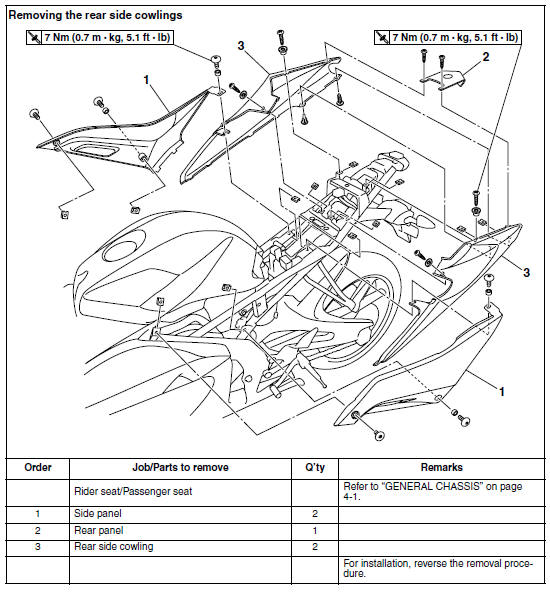

General chassis


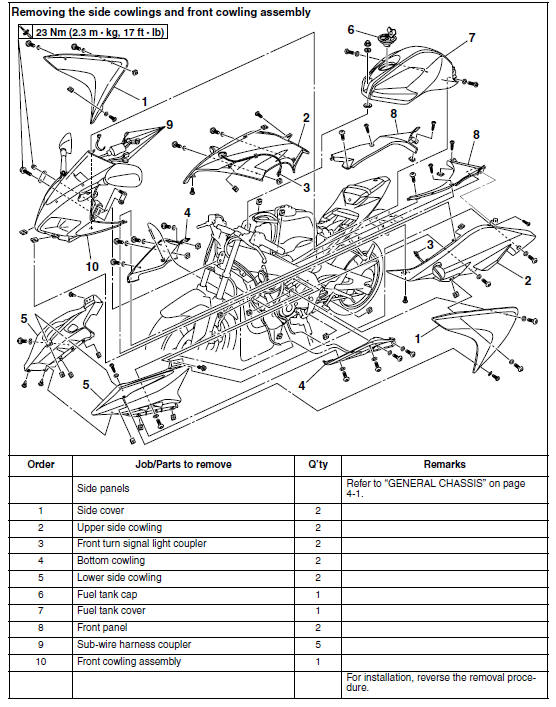

General chassis


General chassis


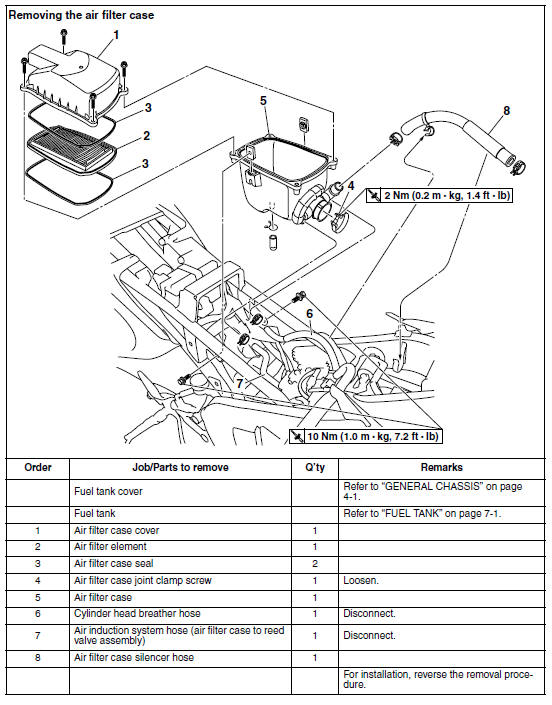

Installing the air filter case

1. Install:

  • Air filter case joint clamp

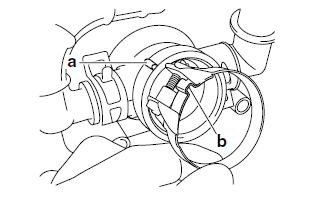

NOTE:

Align the projection "a" on the air filter case with the slot "b" in the air filter case joint clamp.

Installing the air filter case
