Yamaha YZF-R125 Service Manual: Front wheel

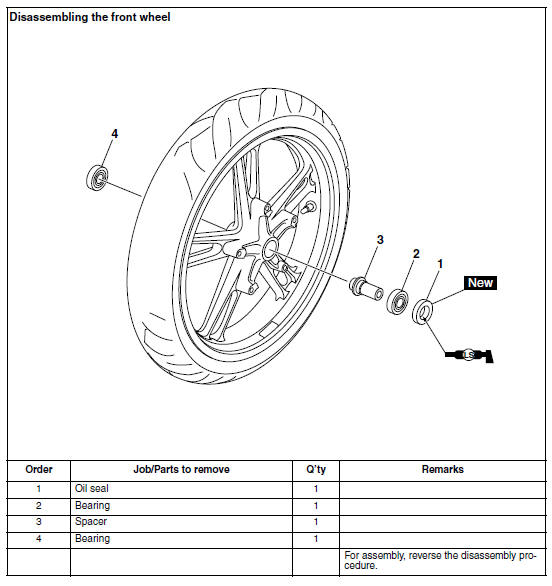

Front wheel


Front wheel


General chassis
Installing the air filter case 1. Install: Air filter case joint clamp NOTE: Align the projection "a" on the air filter case with the slot "b" in the air filter case joint cl ...

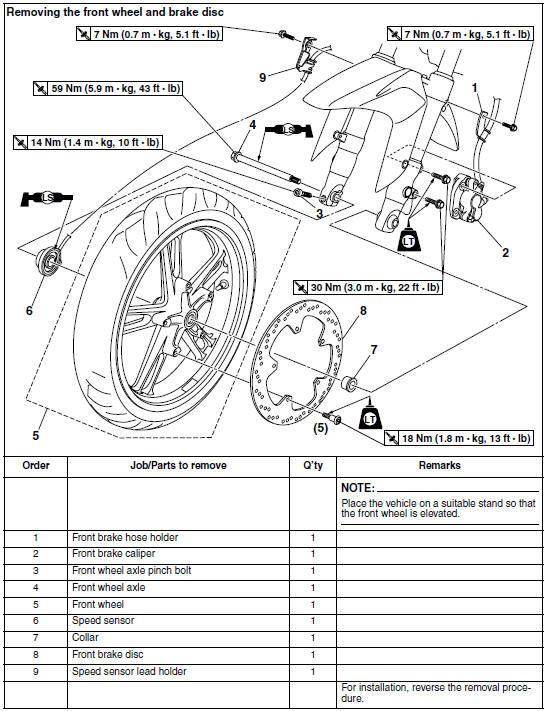

Removing the front wheel (disc)
1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. 2. Elevate: Front wheel NOTE: Place the vehicle ...

Other materials:

Adjusting the throttle cable free play
NOTE: Prior to adjusting the throttle cable free play, the engine idling speed should be adjusted. 1. Check: Throttle cable free play "a" Out of specification →Adjust. 2. Remove: Right side panel Refer to "GENERAL CHASSIS" on page 4-1. 3. Adjust: Throttle cable f ...

Circuit diagram
4. Main fuse 5. Main switch 9. Battery 25.ECU (engine control unit) 36.License plate light 37.Tail/brake light 44.Headlight relay 46.Pass switch 47.Dimmer switch 51.Headlight (low beam) 52.Auxiliary light 54.Headlight (high beam) 58.Meter light 60.High beam indicator light 64.Ignit ...

Checking the engine oil level
1. Stand the vehicle on a level surface. NOTE: Place the vehicle on a suitable stand. Make sure the vehicle is upright. 2. Start the engine, warm it up for several minutes, and then turn it off. 3. Check: Engine oil level The engine oil level should be between the minimum level ...
