Yamaha YZF-R125 Service Manual: Checking the swingarm

Yamaha YZF-R125 Service Manual / Chassis / Swingarm / Checking the swingarm

1. Check:

  • Swingarm Bends/cracks/damage
    Replace.

2. Check:

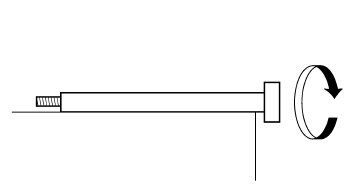

  • Pivot shaft Roll the pivot shaft on a flat surface.

    Bends Replace.


WARNING

Do not attempt to straighten a bent pivot shaft.

Checking the swingarm


3. Wash:

  • Pivot shaft
  • Washer
  • Swingarm adjusting collar
  • Dust covers
  • Spacers
  • Bearings

4. Check:

  • Washer
  • Swingarm adjusting collar
  • Dust covers
  • Spacers

Oil seals Damage/wear Replace.


  • Bearings Damage/pitting Replace.

    Removing the swingarm
    1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. NOTE: Place the vehicle on a suitable stand so that th ...

    Installing the swingarm
    1. Lubricate: Bearings Spacers Dust covers Pivot shaft 2. Install: Bearings "1" 2. Swingarm A. Left side B. Right side 3. Install: Swingarm adjusting collar "1" Swin ...
