Yamaha YZF-R125 Service Manual: Swingarm

Swingarm


Swingarm


Installing the rear shock absorber assembly
1. Install: Rear shock absorber assembly Relay arm "1" NOTE: Install the relay arm as shown in the illustration. 2. Tighten: Rear shock absorber assembly upper nut Relay arm nu ...

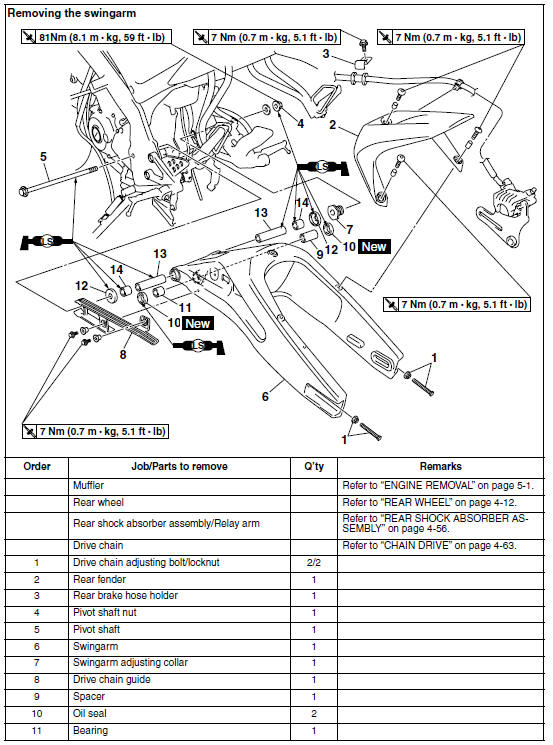

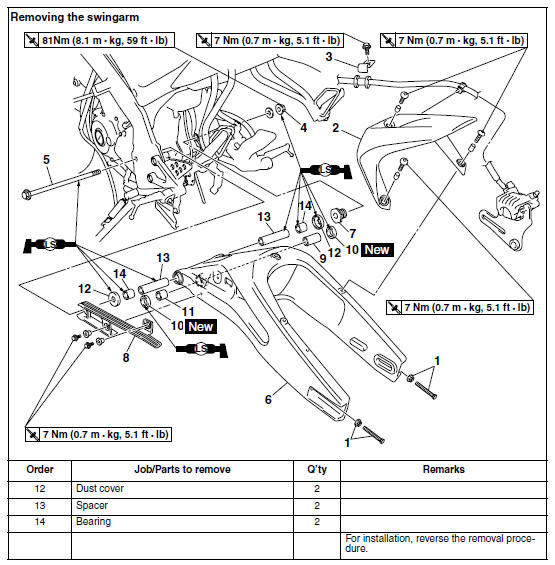

Removing the swingarm
1. Stand the vehicle on a level surface. WARNINGSecurely support the vehicle so that there is no danger of it falling over. NOTE: Place the vehicle on a suitable stand so that th ...
