Yamaha YZF-R125 Service Manual: Checking the camshaft sprocket and timing chain guide

Yamaha YZF-R125 Service Manual / Engine / Cylinder head / Checking the camshaft sprocket and timing chain guide

1. Check:

  • Camshaft sprocket More than 1/4 tooth wear "a" Replace
    the camshaft sprocket, timing chain and crankshaft as a set.

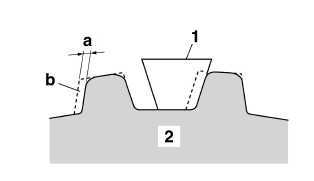

Checking the camshaft sprocket and timing chain guide


a. 1/4 tooth

b. Correct

1. Timing chain roller

2. Camshaft sprocket

2. Check:

Timing chain guide (exhaust side) Damage/wear Replace.
