Yamaha YZF-R125 Service Manual: Checking the clutch plates

Yamaha YZF-R125 Service Manual / Engine / Clutch / Checking the clutch plates

The following procedure applies to all of the clutch plates.

1. Check:

  • Clutch plate Damage Replace the clutch
    plates as a set.

2. Measure:

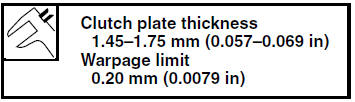

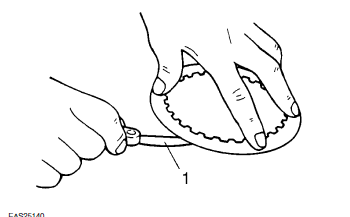

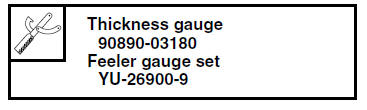

  • Clutch plate warpage (with a surface plate and thickness gauge "1") Out of specification Replace
    the clutch plates as a set.

Checking the clutch plates


    Checking the friction plates
    The following procedure applies to all of the friction plates. 1. Check: Friction plate Damage/wear Replace the friction plates as a set. 2. Measure: Friction plate thickness Ou ...

    Checking the clutch springs
    The following procedure applies to all of the clutch springs. 1. Check: Clutch spring Damage Replace the clutch springs as a set. 2. Measure: Clutch spring free length "a" Out o ...
