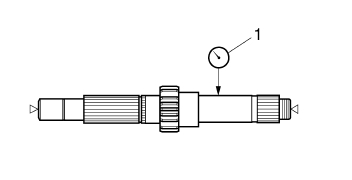

1. Measure:

  • Main axle runout (with a centering device and dial gauge "1") Out of specification Replace
    the main axle.

Checking the transmission

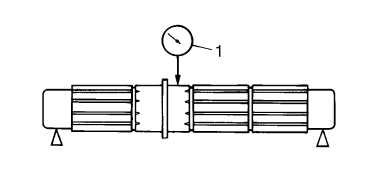

2. Measure:

  • Drive axle runout (with a centering device and dial gauge "1") Out of specification Replace
    the drive axle.

Checking the transmission


3. Check:

  • Transmission gears Blue discoloration/pitting/wear
    Replace the defective gear(s).

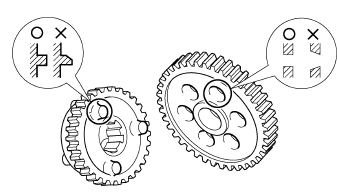

  • Transmission gear dogs Cracks/damage/rounded edges
    Replace the defective gear(s).

Checking the transmission


4. Check:

  • Transmission gear engagement (each pinion gear to its respective wheel gear) Incorrect Reassemble the
    transmission axle assemblies.

5. Check:

  • Transmission gear movement Rough movement Replace the
    defective part(s).
    Checking the shift drum assembly
    1. Check: Shift drum groove Damage/scratches/wear Replace the shift drum assembly. Shift drum segment "1" Damage/wear  Replace the shift drum assembly. Shift drum bearing "2" ...

    Checking the clutch push rods
    1. Check: Long clutch push rod Cracks/damage/wear Replace the long clutch push rod. 2. Measure: Push rod bending limit Out of specification Replace the long clutch push rod. ...
