Yamaha YZF-R125 Service Manual: Assembling the starter motor

Yamaha YZF-R125 Service Manual / Engine / Electric starter / Assembling the starter motor

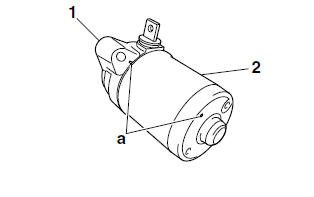

1. Install:

  • Starter motor front cover/brush holder set "1"
  • Starter motor yoke "2"

NOTE:

Align the marks "a" on the starter motor yoke and starter motor front cover/brush holder set.
