Yamaha YZF-R125 Service Manual: Handlebars
Installing the rear brake master cylinder
1. Install:
Copper washers "1"
Brake hose "2"
Rear brake light switch "3"
WARNINGProper brake hose routing is essential to
insure
safe vehicle operation. Refer to "CABLE
...

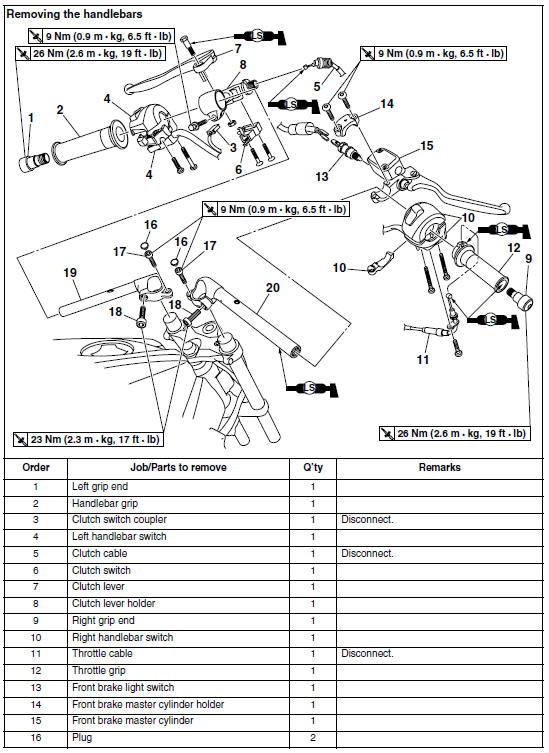

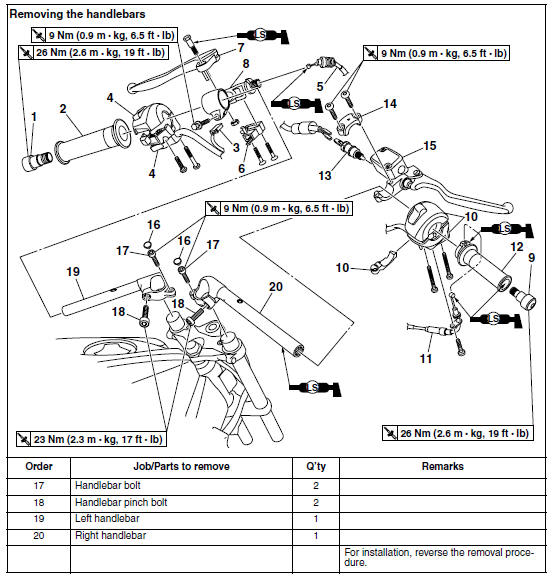

Removing the handlebars
1. Stand the vehicle on a level surface.
WARNINGSecurely support the vehicle so that there
is
no danger of it falling over.
2. Remove:
Handlebar grip "1"
NOTE:
Blow compre ...
