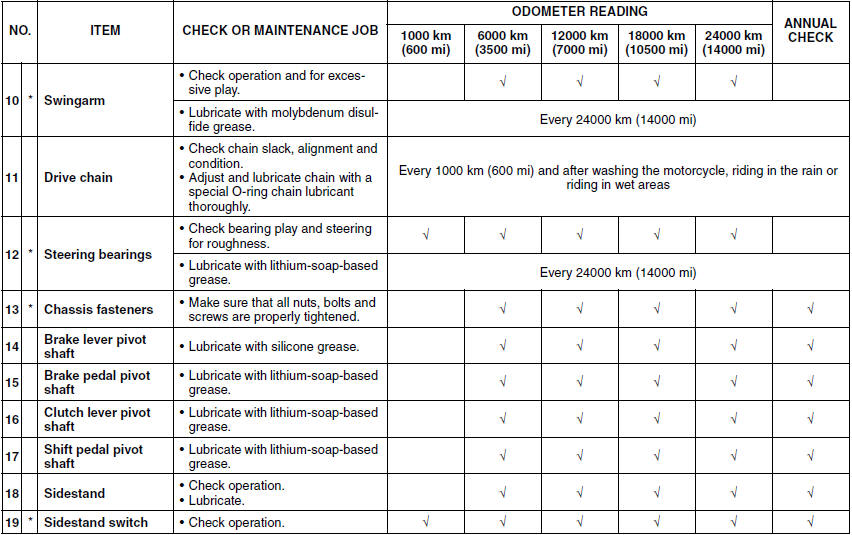

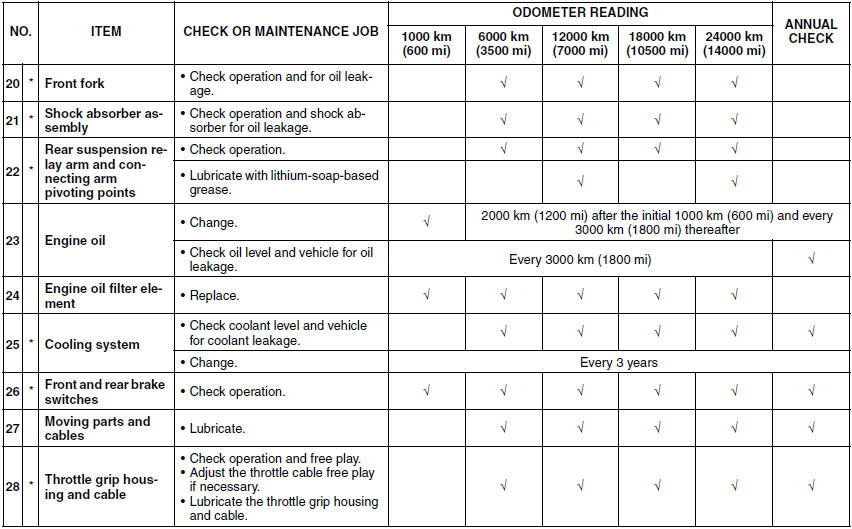

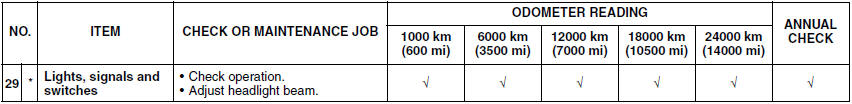

TIP
Installing the generator
1. Install:
Woodruff key
Generator rotor
Washer
Generator rotor nut
NOTE:
Clean the tapered portion of the crankshaft and
the generator rotor hub.
When installing the generator rotor, make sure
the woodruff key is properly sealed in the keyway
of the crankshaft.
2. Tighte ...
Adjusting the clutch cable free play
1. Check:
Clutch cable free play "a"
Out of specification Adjust.
2. Adjust:
Clutch cable free play
a. Pull back the rubber cover "1"
b. Loosen the locknut "2".
c. Turn the adjusting bolt "3" in direction "a" or
"b" until the specified clutch cable free play is
obtained.
...
Cable routing
Front brake light switch lead
Right handlebar switch lead
Throttle cable
Main switch
Clutch cable
Clutch switch lead
Left handlebar switch lead
Sub-wire harness
Horn
Speed sensor lead
Front brake hose
Main switch lead
Left headlight assembly lead
Right headlight asse ...
