Yamaha YZF-R125 Service Manual: Chassis specifications

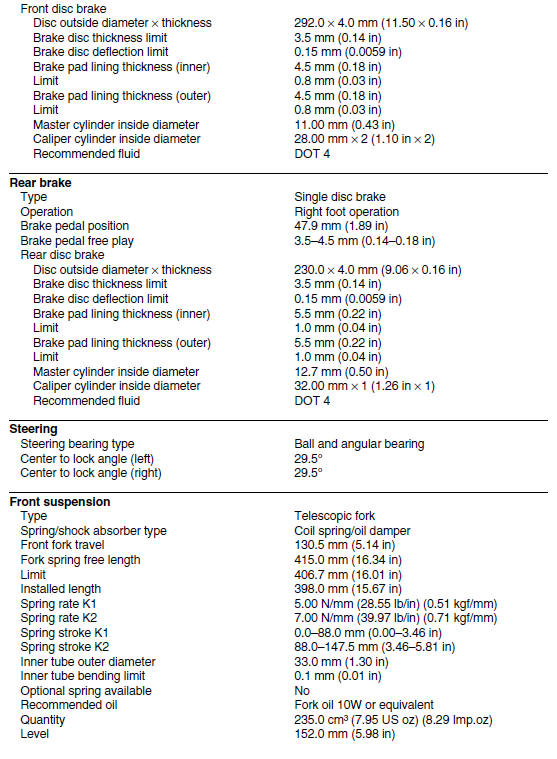

Chassis specifications

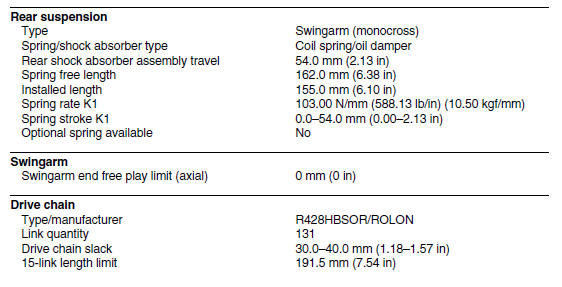

Chassis specifications


Chassis specifications


    Engine specifications
    ...

    Electrical specifications
    ...

    Other materials:

    Checking the shift drum assembly
    1. Check: Shift drum groove Damage/scratches/wear Replace the shift drum assembly. Shift drum segment "1" Damage/wear  Replace the shift drum assembly. Shift drum bearing "2" Damage/pitting Replace the shift drum assembly. ...

    Cleaning the air filter element
    NOTE: There is a check hose "1" at the bottom of the air filter case. If dust and/or water collects in this hose, clean the air filter element and air filter case. 1. Remove: Rider seat Refer to "GENERAL CHASSIS" on page 4-1. 2. Remove: Fuel tank Refer to "FUEL TANK" on page ...

    Circuit diagram
    4. Main fuse 5. Main switch 9. Battery 25.ECU (engine control unit) 36.License plate light 37.Tail/brake light 44.Headlight relay 46.Pass switch 47.Dimmer switch 51.Headlight (low beam) 52.Auxiliary light 54.Headlight (high beam) 58.Meter light 60.High beam indicator light 64.Ignit ...
